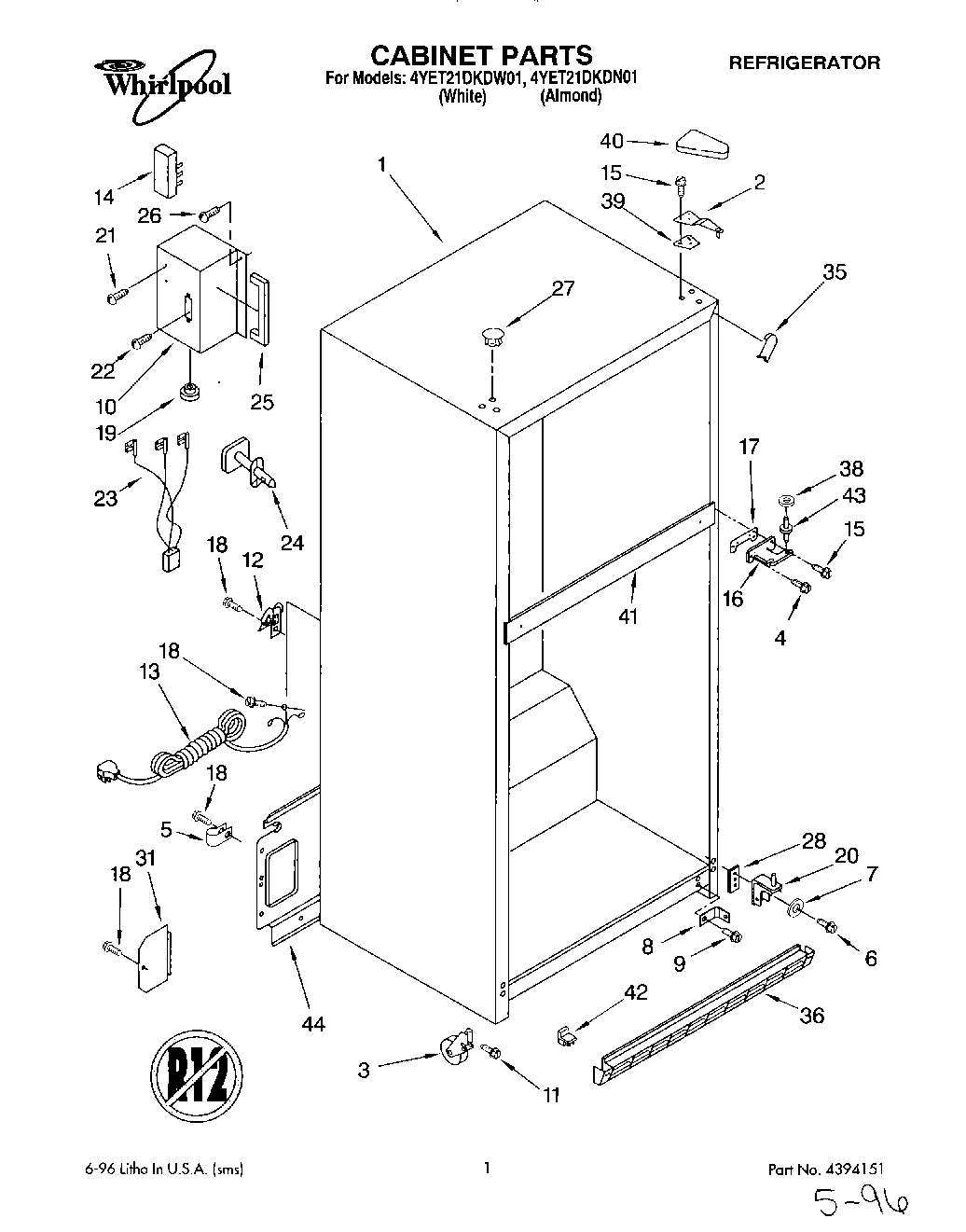

4YET21DKDW01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Hinge (Top)
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4Screw
5WP488366 Whirlpool Refrigerator Clamp
6Screw
7WP489467 Whirlpool Hinge Shim
8Bracket, Bottom Hinge
9Screw
10Enclosure, Term.
11Screw
12489348 Whirlpool Refrigerator Tube Clamp
13Service Cord
14Terminal Block
15WP999367 Whirlpool Refrigerator Screw
16Hinge, Center
17Shim, Hinge Center
18WP489463 Whirlpool Refrigerator Screw
19Bushing
20Hinge Butt
21WPW10272364 Whirlpool Refrigerator Screw
22Screw
23Wire Assembly, Terminal Box
24Fitting, Water Tube (Not Serviced)
25Gasket
26WP250830 Whirlpool Refrigerator Screw
27WP2151652 Whirlpool Refrigerator Button Plug
27Hole Plug (6) (Almond)
28Shim, Bottom Hinge
31Cover, Water Valve
35WPW10283959 Whirlpool Refrigerator Filler
35Corner Filler (2) (Almond)
36Grille (Almond)
36Grille (White)
38WP487576 Whirlpool Washer
39Shim
40Cover-Hinge (Almond)
40Cover-Hinge (White)
41Rail Center (Not Serviced)
42Corner Filler, Grille (White)
42Corner Filler, Grille (Almond)
43WP2254618 Whirlpool Center Door Hinge
44Cover, Unit
