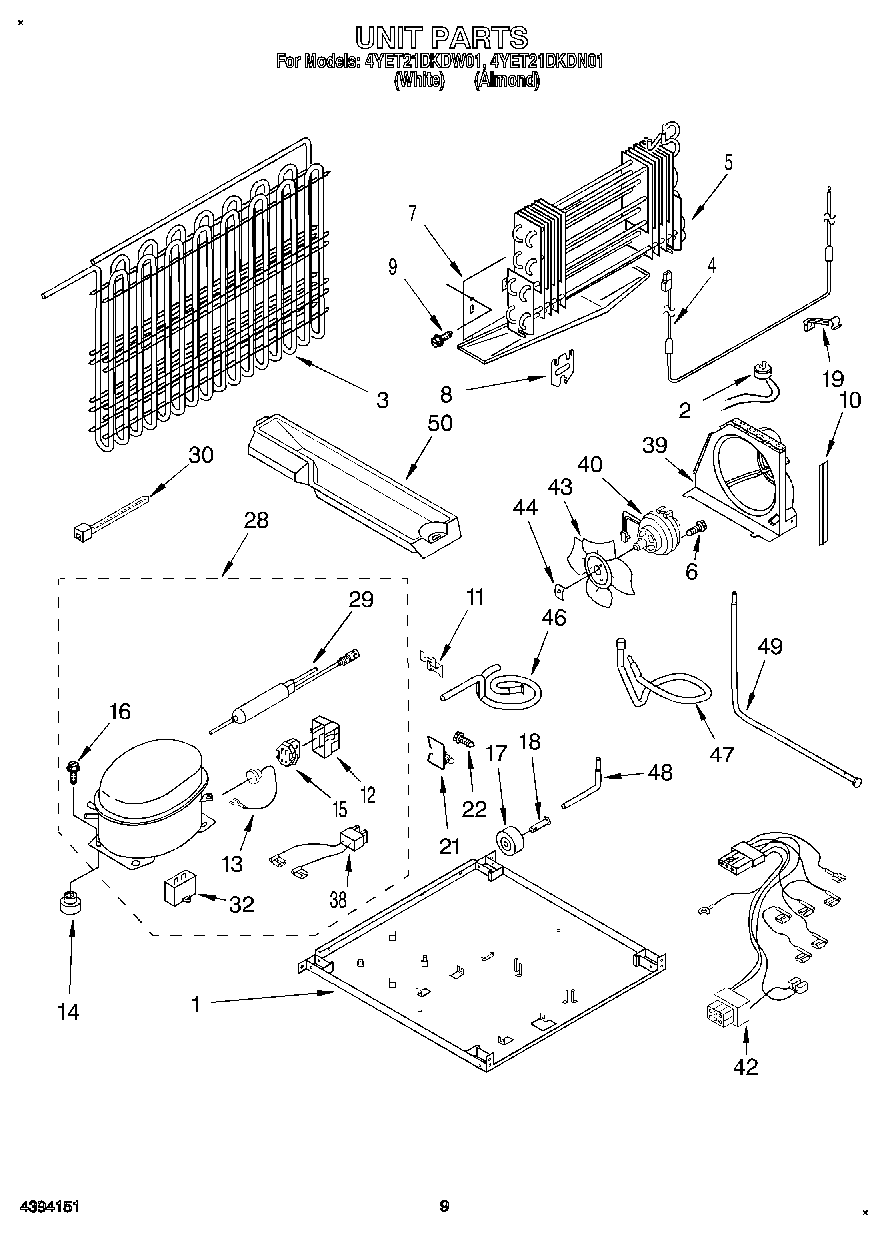

4YET21DKDW01 05 – UNIT

Products

Position	Product
1	Plate, Unit Mounting
2	WP2182381 Whirlpool Refrigerator Bimetallic Defrost
3	Condenser
4	Heater, Defrost
5	Evaporator Assy.
6	Screw
7	Drain Pan
8	Bracket, Heater
9	WP489478 Whirlpool Refrigerator Screw
10	Extension, Air Baffle
11	Clip, Capacitator
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	2169410 Whirlpool Refrigerator Overload
14	W11661108 Whirlpool Grommet
14	876811 Whirlpool Grommet
15	WP2262184 Whirlpool Refrigerator Start Relay
16	SCREW
17	Roller (2)
18	W11594405 Whirlpool Axle
19	Clip, Heater
21	Clip, Wire
22	W11693756 Whirlpool Screw Assembly
28	Compressor (Includes Items 11, 12, 13, 14, 15, 21, 29, 32, 38 And 56) (Also Order)
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WP2201147 Whirlpool Refrigerator Capacitor
38	WP2172890 Whirlpool Refrigerator Wire
39	Baffle, Air
40	8201703 Whirlpool Refrigerator Condenser Motor
42	Wire Assy. Unit
43	Fan, Blade
44	WP486692 Whirlpool Refrigerator Nut
46	Tube, Discharge
47	Tube, Suction
48	2154109 Whirlpool Refrigerator Tube
49	Tube, Condenser To Heat Loop
50	978030 Whirlpool Refrigerator Valve
50	Start Kit
50	VALVE, ACCESS (5/8“)
50	876764 Whirlpool Refrigerator Primary Valve
50	978026 Whirlpool Refrigerator Primary Valve
50	978027 Whirlpool Refrigerator Primary Valve
50	WP978025 Whirlpool Refrigerator Valve
50	Evap. Tray
50	VALVE, ACCESS (1/2“)
