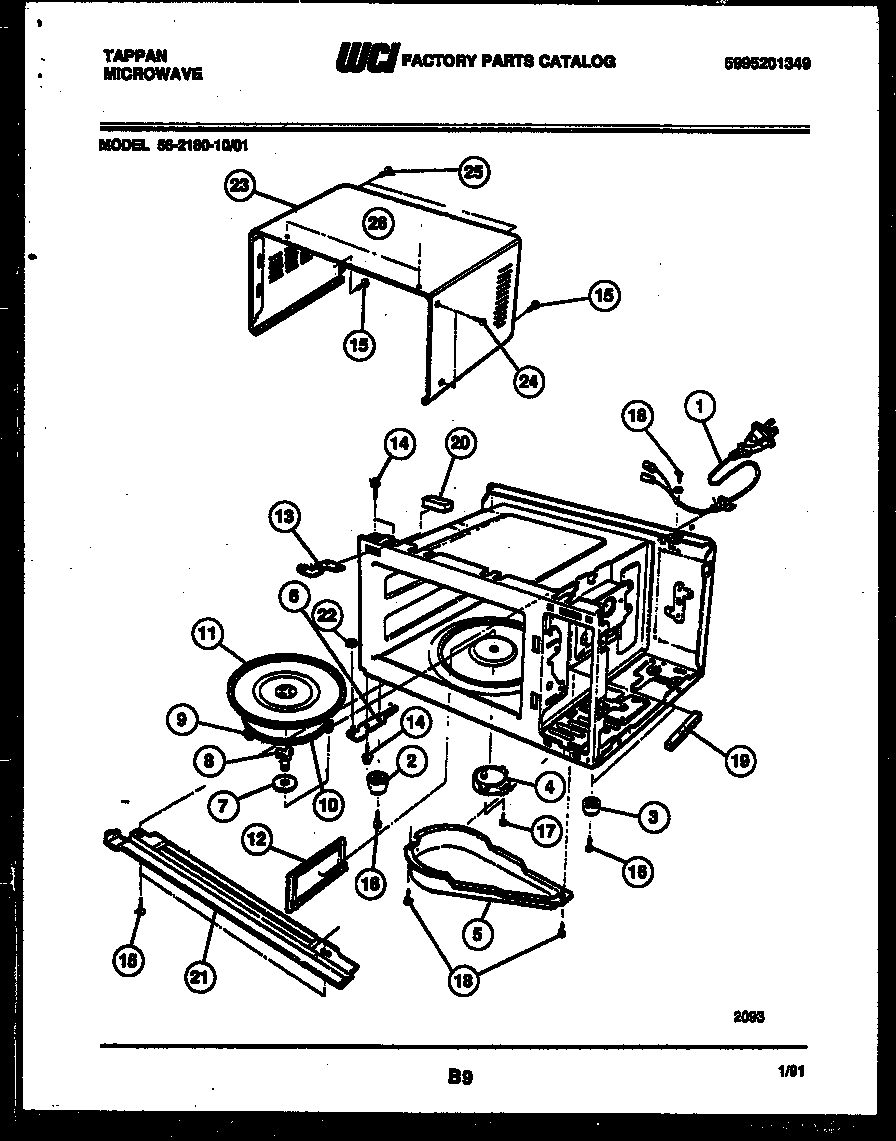

56-2180-00-01 02 – WRAPPER AND FUNCTIONAL PARTS

56-2180-00-01 02 – WRAPPER AND FUNCTIONAL PARTS

Written by

in

56-2180-00-01 02 – WRAPPER AND FUNCTIONAL PARTS

Products

PositionProduct
1WCI 5303269549
2WCI 5303269550
3FOOT (2)
4WCI 5303269551
5WCI 5303269553
6WCI 5303269555
7WCI 5303210050
8WCI 5303269558
9ROLLER-GLASS TRAY (3)
10WCI 5303269559
11WCI 5303269560
12WCI 5303210064
13WCI 5303269562
14SCREW-TAP TITE (4)
15SCREW TRUSS HEAD(16)
16WCI 5303269565
17WCI 5303269566
18SCREW-COVER (3)
19WCI 5303269568
20WCI 5303269569
21WCI 5303269571
22WCI 5303208721
23WCI 5303269572
24TAPPING SCREW
25SCREW – D
26WCI 5303269573
