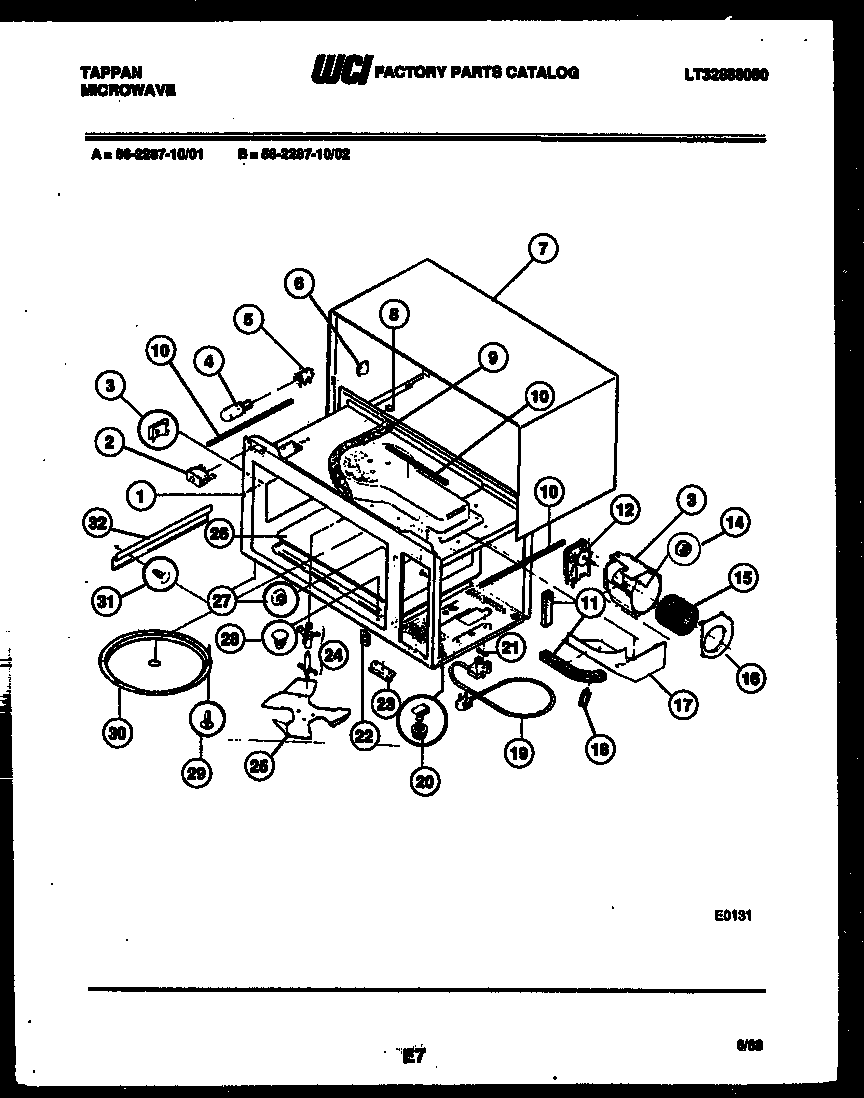

56-2287-10-01 05 – BODY PARTS

Products

Position	Product
*12682	WCI 508T026P02
*12682	WCI 3091554
*12683	WCI 3091568
*12683	WCI 560778P01
*12682	WCI 508T020P02
*12682	WCI 3091131
*12682	WCI 3091561
*12682	WCI 3091562
2	WCI 11ST695P13
3A	WCI 636T069P05
3	3203010 Frigidaire Clip
4	WCI 374T027P01
5	SOCKET
6	FASTNER, WRAPR (2)
7	WCI 809T025S01
7A	SCREW (8) (NON-ILLUSTRATED)
8	SPACER
9	WCI 115T211P01
10	TAPE, FOAM 29“
12	FAN MOTOR
12A	SCREW SW PNL. (7)
13	HSG, BLOWER
14	NUT STIRRER SHAFT TO FAN
15	WCI 115T799P01
16	COVER, BLWR HSG.
17	WCI 211T066P01
18	FASTNR WIRE CLIP
19	WCI 171T025P05
20	WCI 66ST185P02
21	WCI 115T262P01
22	BEZEL – LATCH (ALMD)
23	WCI 072T825F01
24	KIT, STIR SUPT
25	WCI 3012289
26	GLASS – TRAY
27	PLUG, BTN PROBE (NON-ILLUSTRATED)
28	WCI 557T029P01
29	RIVET ACCORDIAN (NON-ILLUSTRATED)
30	COVER STIRRER (ALMD)
31	FASTNER CLIP W/REF. NO. 35
32	WCI 024T172P02
