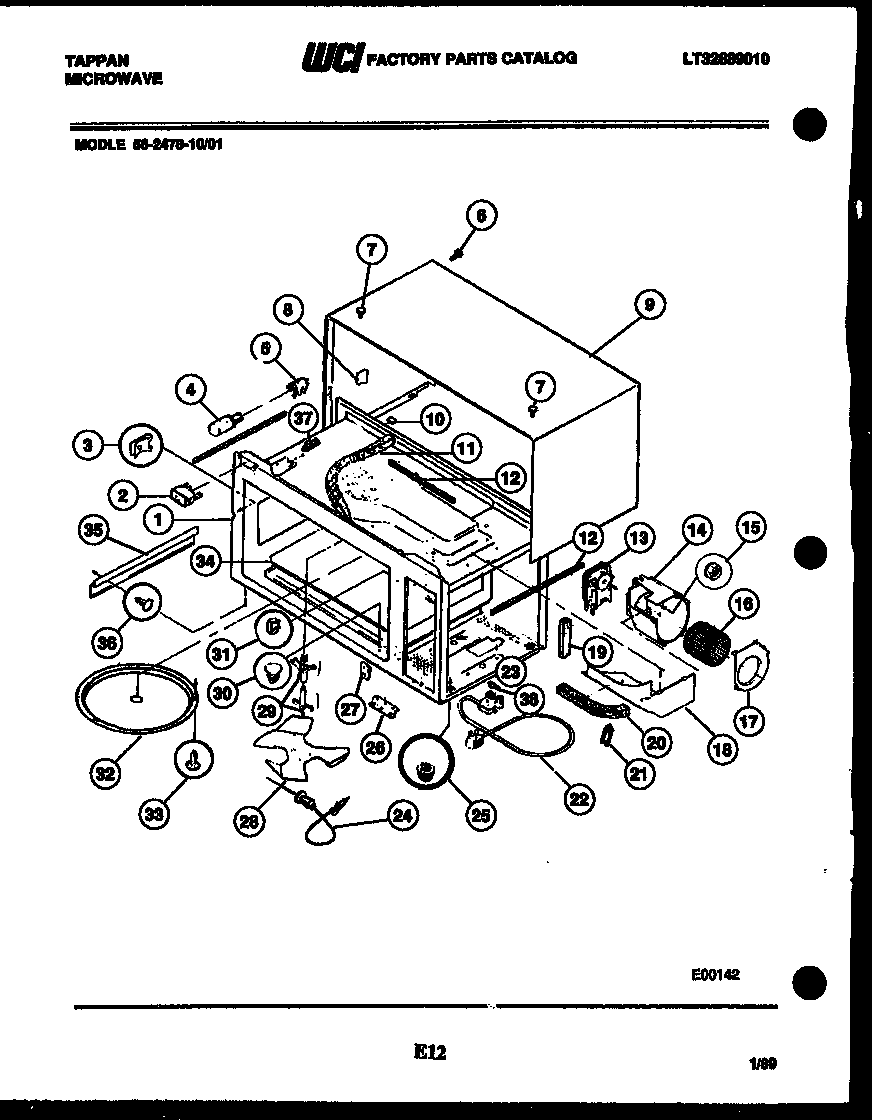

56-2478-10-01 04 – BODY PARTS

Products

Position	Product
2	SWITCH-MONITOR (WHITE)
3	3203010 Frigidaire Clip
4	BULB
5	WCI 3014074
6	SCREW – WRAPPER (10)
7	PLUG BUTTON (2) WOODSTONE
8	CLIP – WRAPPER
9	WRAPPER
10	WCI 08037724
11	DUCT-AIR FOAM
12	SEAL (1/4 X 1/4)
13	WCI 3011677
14	WCI 3012868
15	WCI 3013270
16	WCI 3091501
17	COVER HOUSING
18	WCI 3018201
19	WCI 3091131
20	SEAL (1/2 X 3/4)
21	CLIP
22	WCI 08037629
23	WCI 3013702
24	WCI 3201366
25	WCI 3014097
26	WCI 3011555
27	WCI 3200551
28	WCI 3201598
29	KIT – STIRRER SUPT
30	WCI 3013628
31	WCI 3013283
32	WCI 3200541
33	RIVET – COVER
34	GLASS – TRAY
35	BAFFLE – AIR W/ CLIPS
36	CLIP – BAFFLE
37	WCI 3203011
38	FUSE
