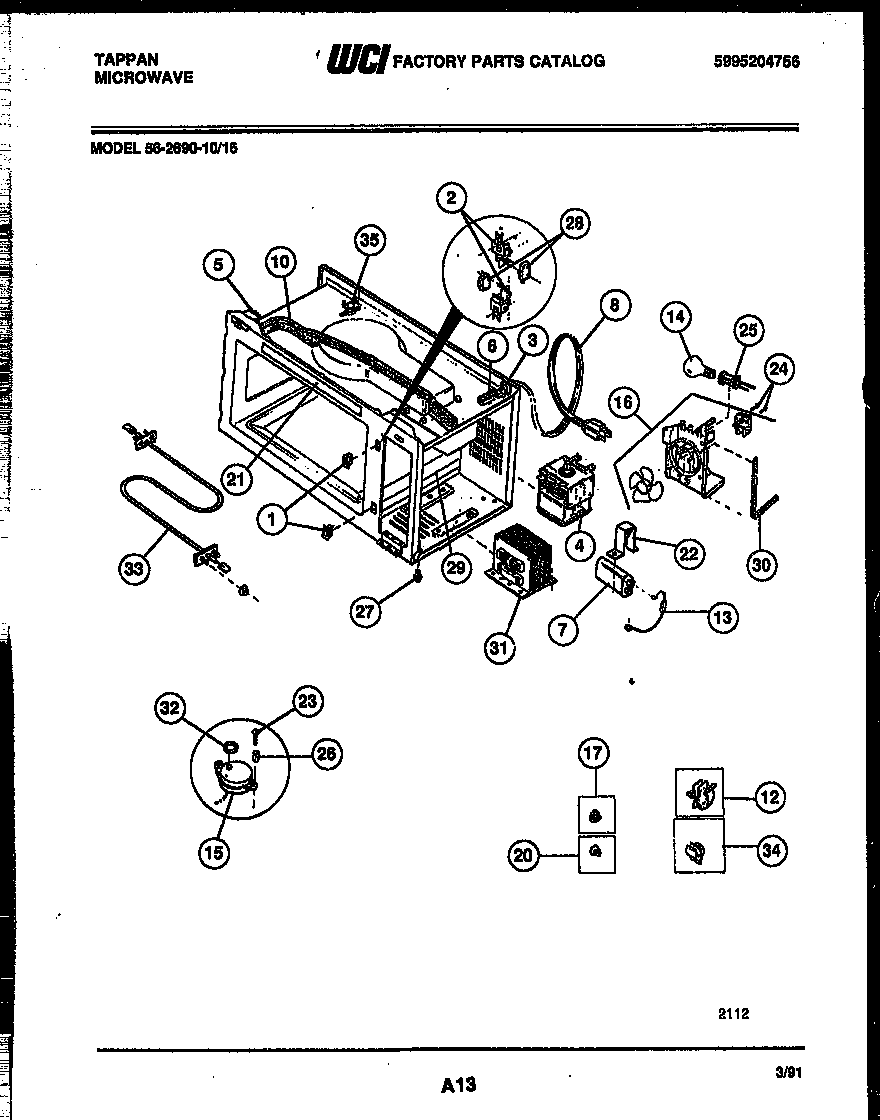

56-2690-10-16 04 – FUNCTIONAL PARTS

Products

Position	Product
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	WCI 5303212773
8	WCI 5303212774
10	WCI 5303212783
12	WCI 5303212787
13	WCI 5303212799
14	LAMP-120V
15	WCI 5303203150
16	WCI 5303922053
17	PLUG-BUTTON
20	PLUG-BUTTON TRAY (2)
21	WCI 5303018849
22	WCI 5303013771
23	SCREW – TRIAC
24	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
25	SOCKET, OVEN LAMP, 120V
26	SPACER-MOTOR
27	FOOT (4)
28	WCI 5303203636
29	WCI 5303212845
30	SEAL-FOAM CUT TO SIZE
31	WCI 5303212811
32B	WCI 5303203239
32	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
32C	5303321319 Frigidaire Refrigerator White Touch Up Paint
32A	WCI 5303212796
32E	WCI 5303017865
32D	WCI 5303269631
32F	216273000 Frigidaire Refrigerator Strap
33	WCI 5303212785
33A	WCI 5303212797
33B	WCI 5303212798
34	SUPPORT RACK (8)
35	WCI 5303091417
