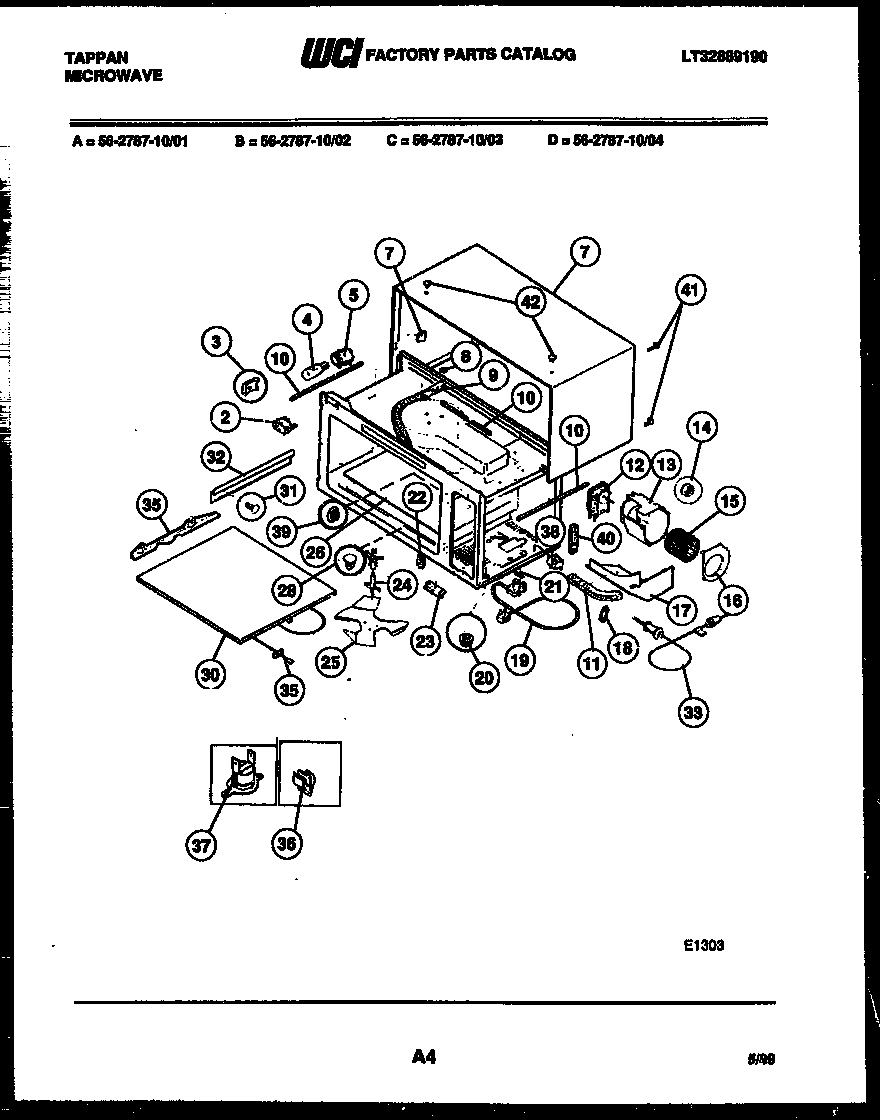

56-2787-00-03 04 – BODY PARTS

56-2787-00-03 04 – BODY PARTS

Written by

in

56-2787-00-03 04 – BODY PARTS

Products

Position	Product
2	SWITCH-MONITOR (WHITE)
3	3203010 Frigidaire Clip
4	WCI 374T027P01
5	SOCKET
6	FASTNER, WRAPR (2)
7	WCI 809T025F05
8	SPACER, WRAPPER
9	WCI 115T211P01
10	TAPE, FOAM 29“
11	TAPE, FOAM 9 1/2“
12A	WCI 636T046P04
12	FAN MOTOR
13	HSG, BLOWER
14	NUT STIRRER SHAFT TO FAN
15	WCI 799T009P01
16	COVER HOUSING
17	WCI 211T066P01
18	FASTNR WIRE CLIP
19	WCI 171T039P03
20	SPACER FOOT
21	FUSE
22	WCI 3200551
23	WCI 072T825F01
24	KIT, STIR SUPT
25	WCI 239T055F01
26	WCI 736T012P01
28	WCI 557T029P01
30	WCI 3015229
31	WCI 241T107P171
32	WCI 024T172P02
32A	WCI 115T557P02
33	WCI 115T563P03
34A	CHANNEL – GLASS SUPPORT RH
34	CHANNEL – GLASS SUPPORT LH
35A	WIRE RACK (NON-ILLUSTRATED)
35	WCI 3015216
36	SUPPORT, RACK
37	SWITCH-THERMAL CUTOUT
38	WCI 597T048P01
39	WCI 3013283
40	WCI 3091131
41	SCREW – WRAPPER (10)
42	PLUG BUTTON-WRAPPER (2)
