56-3357-10-03 05 – POWER CONTROL

56-3357-10-03 05 – POWER CONTROL

Written by

in

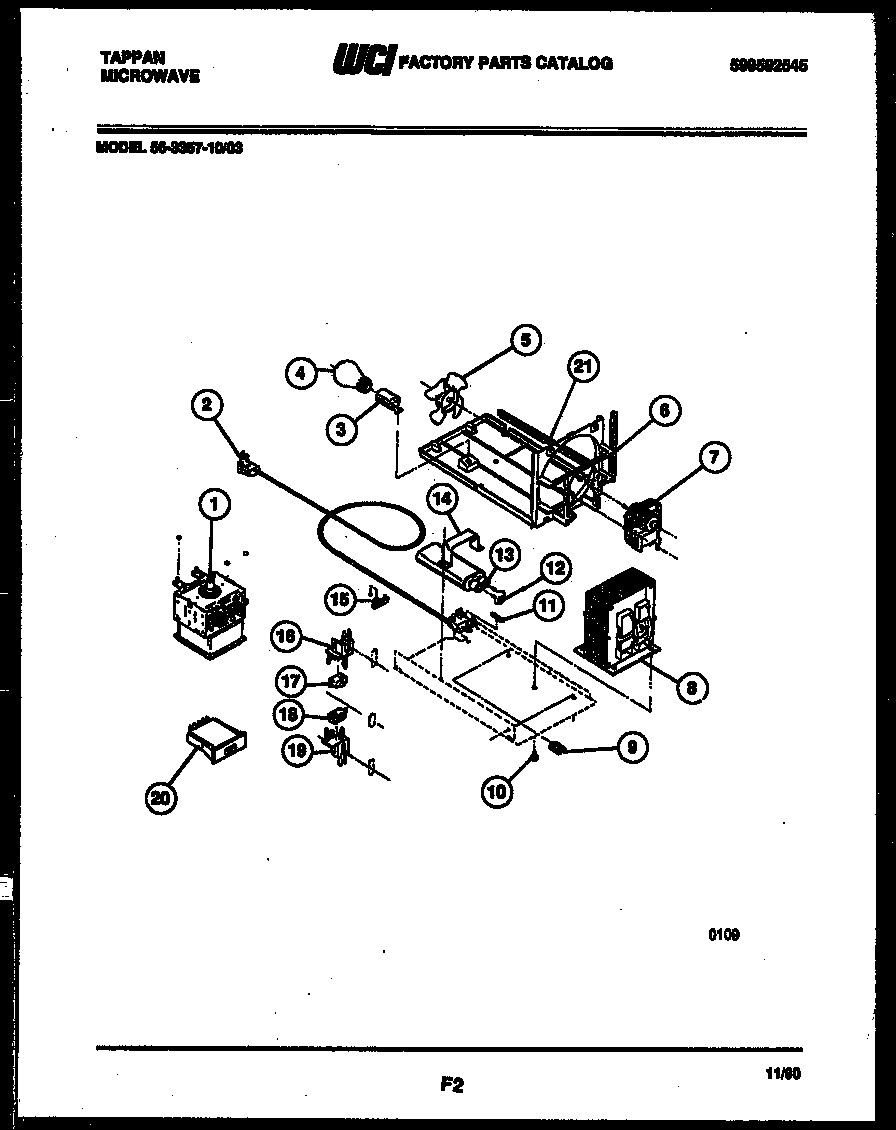

56-3357-10-03 05 – POWER CONTROL

Products

PositionProduct
1WCI 5303206781
2CORD-POWER
3WCI 5303091197
4316538904 Frigidaire Oven Lamp Light
5WCI 5303203192
6DUCT-AIR
7WCI 5308037636
8WCI 5308037626
9CLIP
10SCREW – TRANS (4) (NON-ILLUSTRATED)
11FUSE-20 AMP
12DIODE HIGH VOLTAGE
12AWCI 191T175F99
13CAPACITOR – HV
14WCI 5303013771
15WCI 5303091280
18WCI 5303203636
19BRACKET (2)
20WCI 5303204635
20AWCI Q000198577
20CINSULATOR
20BWCI 08037711
21SEAL-FOAM CUT TO SIZE
