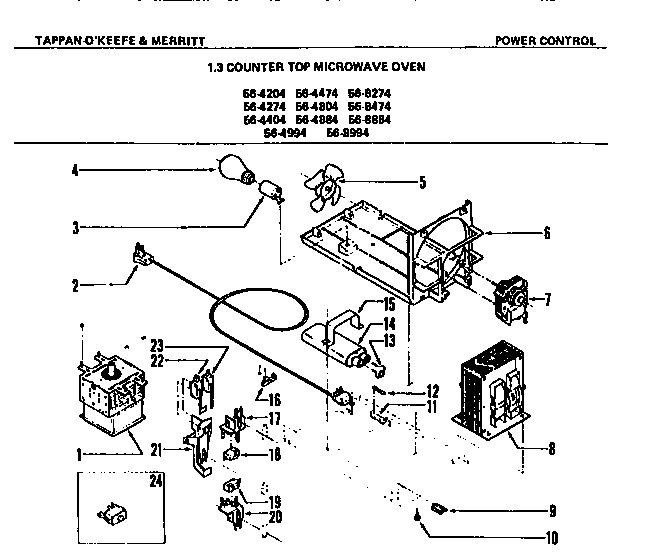

56-4204-10-05 04 – POWER CONTROL

Products

Position	Product
*18443	WCI 299T405S353
*18457	WCI 299T400S176
*18458	WCI 299T405S368
*18447	WCI 299T400S220
*18459	WCI 299T405S314
*18446	SWITCH-THERMAL CUTOUT (4804,4884,4994,8884,8994)
*18444	WCI 16GR30-12MJ1
*18442	WCI 299T405S330
*18441	WCI 299T405S316
*18440	WCI 299T405S380
*18445	WCI 16GR30-5MJ1
*18456	WCI 299T405S317
1	WCI 116T423P02
2	CORD, POWER
2	WCI 171T035P01
3	WCI 662T027P02
4	316538904 Frigidaire Oven Lamp Light
5	BLADE – FAN
5	FAN BLADE TRANSFORMER
6	WCI 211T051P01
6	WCI 211T051P02
6	WCI 211T051P03
7	WCI 115T463P02
7	WCI 636T095P49
7	HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUSTRATED)
8	WCI 115T737P03
8	WCI 115T737P06
9	FASTNR WIRE CLIP
10	SCREW, TRANS (4)
10	SCRW. TRANSFORMR. MTG. 1/4-20 X 1/2“ (4)
11	RECEPT-FUSE
12	WCI 262T017P01
12	WCI 115T262P01
13	DIODE HV
13	WCI 198T020P01
14	WCI 157T029P04
14	CAPACITOR HV
15	WCI 612T122F01
15	WCI 612T108F01
16	WCI 262T015P02
17	WCI 072T774S10
17	WCI 072T774S14
17	WCI 072T774S02
19	WCI 115T695P03
19	WCI 695T186P01
20	WCI 072T774S01
20	WCI 072T774S13
20	WCI 072T774S09
20	WCI 072T826S01
21	WCI 072T775P01
22	WCI 115T695P06
22	WCI 695T186P04
23	WCI 115T695P04
23	WCI 695T186P02
24	WCI 115T695P13
