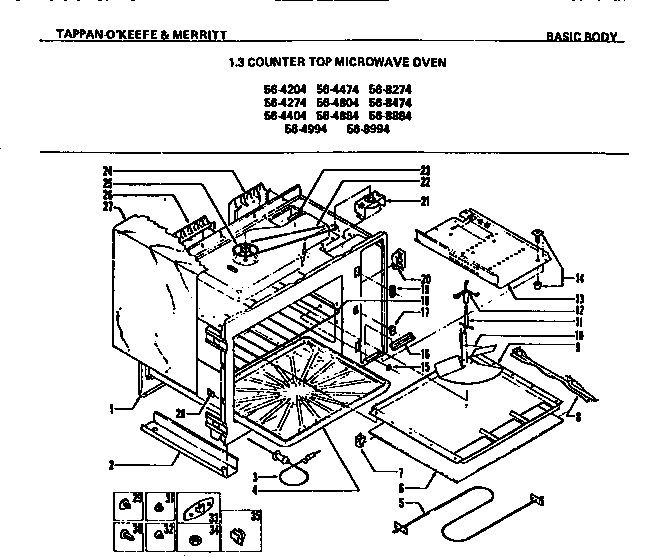

56-4274-10-03 19 – BASIC BODY

56-4274-10-03 19 – BASIC BODY

Written by

in

56-4274-10-03 19 – BASIC BODY

Products

PositionProduct
*18448WCI 560T705P01
*18464WCI 115T655P01
*18452WCI 570T668P05
*18451WCI 560T695P03
*18463LABEL COOKING GUIDE (NON-ILLUSTRATED)
*18450WCI 560T695P01
*18460WCI 211T053P02
*18453WCI 508T020P02
*18465WCI 655T382P02
1FASTNER, WRAPR (2)
1WCI 000000000
2WCI 136T327F01-18
3WCI 115T563P03
4WCI 115T736P01
4WCI 736T011P01
5WCI 220T013P06
5WCI 220T013P09
6GLASS-STIRRER COVER (4804,4884,8884 LOT 6,7,8)(4994,8994, LOT 4,5,6,7)
6WCI 277T201P01
7WCI 612T111P01
7WCI 612T111P06
7WCI 612T111P05
7WCI 612T111P02
7WCI 612T111P04
7WCI 612T111P03
8WCI 136T348P02
8CHANNEL-STIRRER GLASS SUPPORT LH (4804,4884,8884 LOT 7,8
9WCI 174T259P01
10WCI 239T050F01
10WCI 239T049F01
11WCI 694T076P01
12WCI 154T022P01
13WCI 136T325F06
13WCI 136T326F01-18
13WCI 136T325F04
14WCI 355T683S01
15WCI 479T084P01
16WCI 072T780F01
17WCI 287T003P12
17WCI 045T068P01
18WCI 591T074P02
19WCI 045T067P01
20WCI 597T048P01
21WCI 463T095S01
22WCI 044T002P03
23WCI 665T177P01
24WCI 211T055P01
25WCI 566T002P01
25WCI 789T064P01
26WCI 211T049P02
26WCI 211T049P01
27WCI 809T021F01
283203010 Frigidaire Clip
29PLUG BUTTN. RACK GLIDES (8)
30RIVET ACCORDIAN (NON-ILLUSTRATED)
31PLUG, BTN PROBE (NON-ILLUSTRATED)
32WCI 557T029P01
33WCI 557T027P01
34NUT
35SUPPORT, RACK
35WCI 694T077P01
