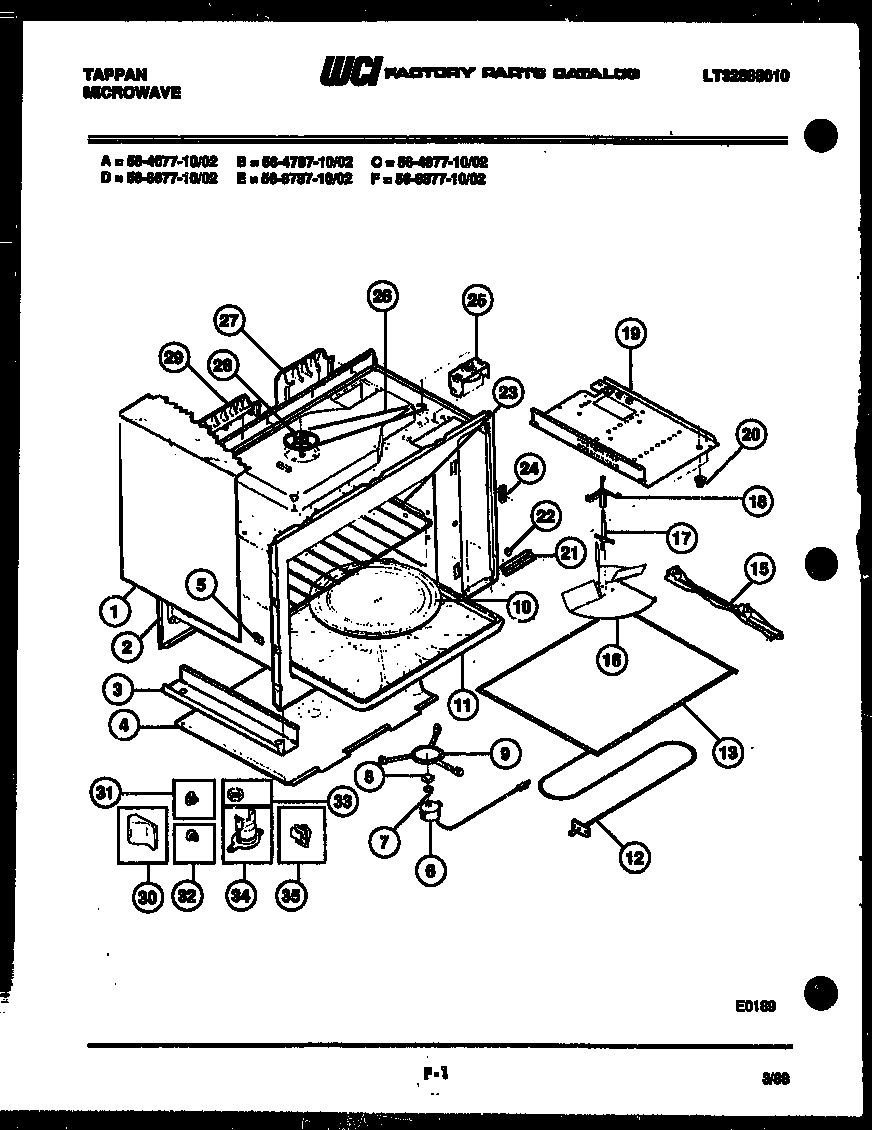

56-4677-10-02 05 – BODY PARTS

Products

Position	Product
*11204	WCI 3011684
*11203	WCI 115T655P01
*11204	WCI 211T053P02
*11204	WCI 665T177P01
*11204	WCI 508T026P02
*11203	LABEL – ALMOND
1	WCI 809T021F01
3	WCI 136T327F01
5	3203010 Frigidaire Clip
11	WCI 115T736P01
12	WCI 220T013P10
13	GLASS-STIRRER COVER (4804,4884,8884 LOT 6,7,8)(4994,8994, LOT 4,5,6,7)
15	WCI 136T348P02
15	CHANNEL-STIRRER GLASS SUPPORT LH (4804,4884,8884 LOT 7,8
16	WCI 239T050F01
17	WCI 694T076P01
18	WCI 154T022P01
19	CHANNEL-BASE RH
20	SPACER FOOT
21	WCI 072T780F01
22	WCI 287T003P12
23	RACK-OVEN
24	BEZEL – LATCH (ALMD)
25	WCI 463T095S01
26	WCI 044T002P03
27	WCI 211T055P01
28A	WCI 789T064P01
28	WCI 566T002P01
29	WCI 211T049P02
30	FASTNER, WRAPR (2)
31	PLUG, BTN PROBE (NON-ILLUSTRATED)
32	WCI 557T029P01
33	NUT
34	SWITCH-THERMAL CUTOUT (4804,4884,4994,8884,8994)
35	SUPPORT, RACK
