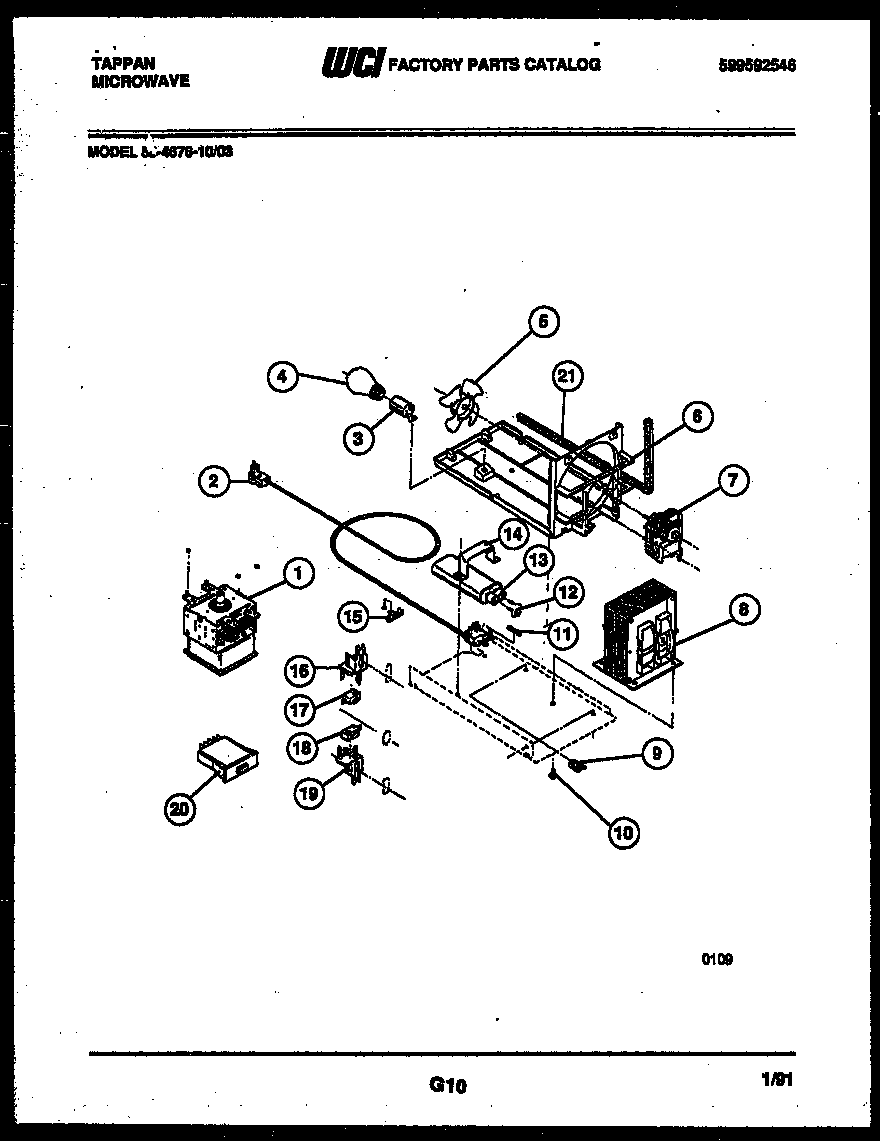

56-4678-10-03 04 – POWER CONTROL

56-4678-10-03 04 – POWER CONTROL

Written by

in

56-4678-10-03 04 – POWER CONTROL

Products

PositionProduct
1WCI 5303206781
2CORD-POWER
3WCI 5303091197
4316538904 Frigidaire Oven Lamp Light
5WCI 5303203192
6DUCT-AIR
7WCI 5308037636
8WCI 5308037626
9CLIP
10ADIAGRAM-WIRING (NOT FOR PURCHASE)
10SCREW – TRANS (4) (NON-ILLUSTRATED)
11FUSE-20 AMP
12DIODE HIGH VOLTAGE
13CAPACITOR – HV
14WCI 5303013771
15WCI 5303091280
18WCI 5303203636
19BRACKET (2)
20AWCI 5303018251
20SWITCH-MONITOR
20CINSULATOR
20BHARNESS-BROWNER
21SEAL-FOAM CUT TO SIZE
