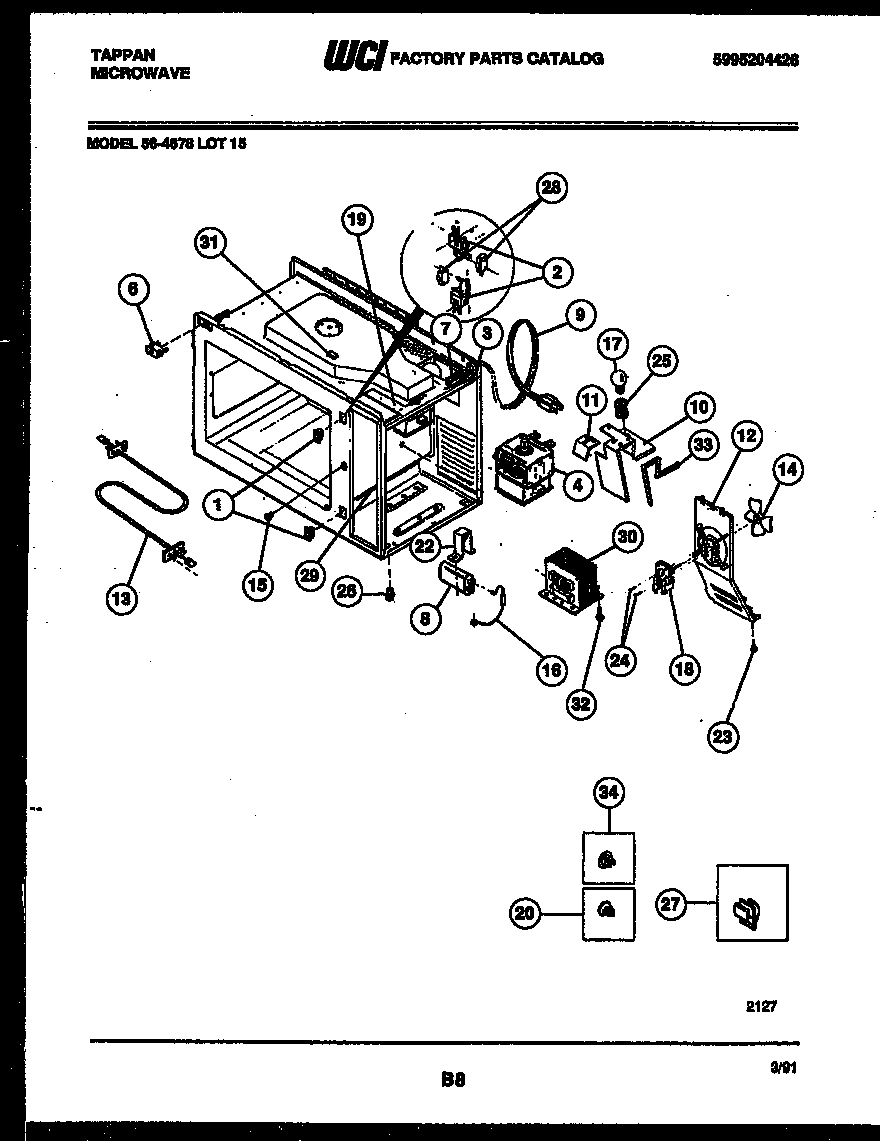

56-4678-10-15 04 – FUNCTIONAL PARTS

Products

Position	Product
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
6	SWITCH-MONITOR
7	FUSE-20 AMP
8	WCI 5303269608
9	WCI 5303212774
10	WCI 5303269831
11	WCI 5303269832
12	WCI 5303269833
13	WCI 5303212785
14	WCI 5303269834
15	WCI 5308037644
16	WCI 5303269837
17	LAMP-120V
18	WCI 5303212802
19	Nut
20	PLUG-BUTTON TRAY (2)
22	WCI 5303013771
23	WCI 5303269846
24	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
25	SOCKET, OVEN LAMP, 120V
26	FOOT (4)
27	SUPPORT RACK (8)
28	WCI 5303203636
29	WCI 5303212845
30	WCI 5303212811
31B	WCI 5303269843
31A	DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
31D	HEX NUT
31	SPACER
31C	WCI 5303270947
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
33	SEAL-FOAM CUT TO SIZE
33B	5303321319 Frigidaire Refrigerator White Touch Up Paint
33A	WCI 5303017865
34	PLUG-BUTTON
