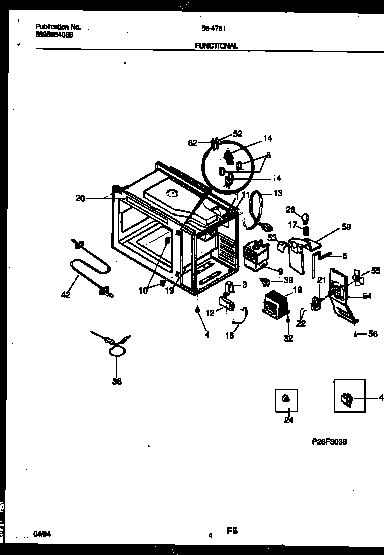

56-4751-10-05 04 – FUNCTIONAL PARTS

Products

PositionProduct
*10087WCI 317000407
1FUSE-20 AMP
3WCI 5303013771
4WCI 5303295314
5SEAL-FOAM CUT TO SIZE
8WCI 5303203636
9WCI 5303206781
10WCI 5303212767
11WCI 5303212769
12WCI 5303269608
13WCI 317005401
14WCI 317000702
16WCI 5303269837
17SOCKET, OVEN LAMP, 120V
18WCI 317016901
19WCI 5303273954
20LABEL-COOK GUIDE (NON-ILLUSTRATED)
21WCI 5303922053
22WCI 317004703
22AHEX NUT
24PLUG-BUTTON TRAY (2)
26LAMP-120V
32SCREW – TRANS (4) (NON-ILLUSTRATED)
38WCI 5303011684
39ANUT
39WCI 5303013702
40SUPPORT RACK (8)
42WCI 5303212785
42AWCI 317006202
52WCI 317005104
53WCI 5303269832
54WCI 5303269833
55WCI 5303269834
56WCI 5303269846
59WCI 5303286094
62WCI 317005103
