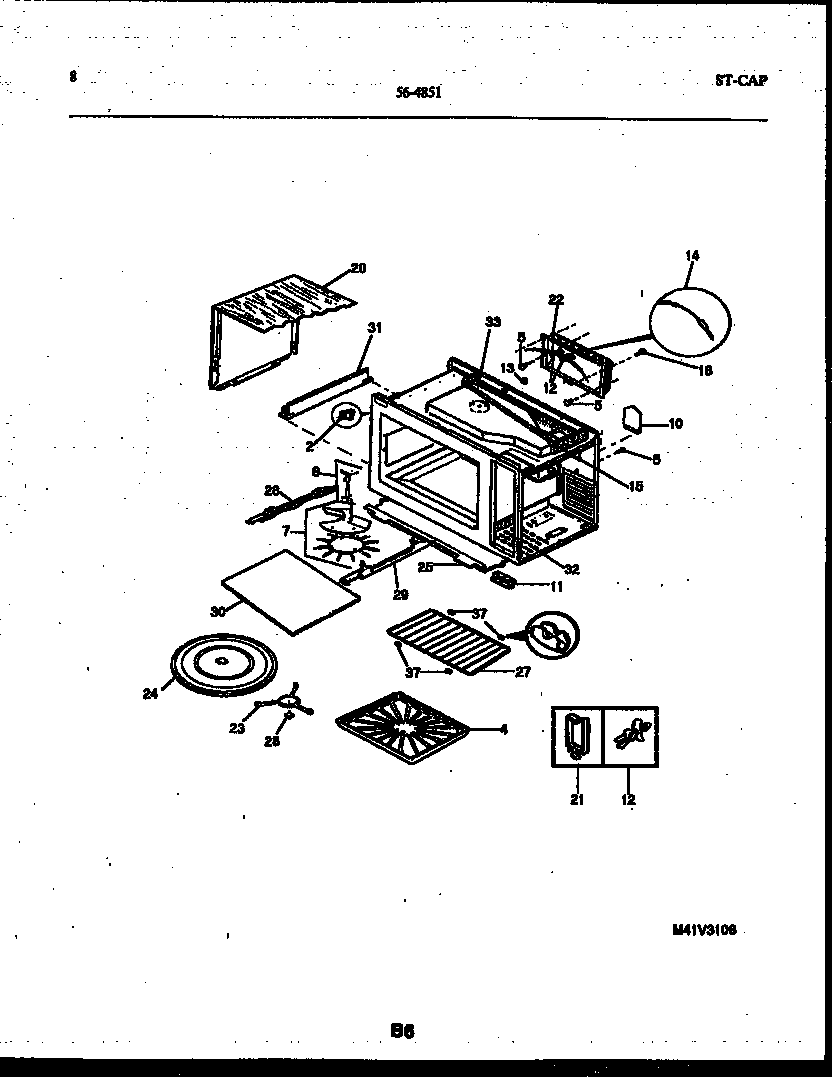

56-4851-10-02 05 – WRAPPER AND BODY PARTS

56-4851-10-02 05 – WRAPPER AND BODY PARTS

Written by

in

56-4851-10-02 05 – WRAPPER AND BODY PARTS

Products

PositionProduct
*72274SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
*72274DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
*722745303321319 Frigidaire Refrigerator White Touch Up Paint
23203010 Frigidaire Clip
4GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
5PLUG, BUTTON, WHITE, (2)
7FAN-STIRRER
8WCI 5303922010
10WCI 5303212775
11BRACKET-CONT PNL SUPT
11AWCI 5303273916
12WCI 5303212788
13WCI 5303280263
14WCI 5303212800
15Nut
16WCI 5303271024
20AWCI 5303273263
20WCI 5303283483
21CLIP
22WCI 5303269958
23SUPPORT-ROLLERS
24TRAY-ROUND
25SHIELD-OVEN BOTTOM, BLACK
26BUSHING-MOTOR
27RACK
28CHANL-SUPT LH
29CHANL-SUPT RH
30GLASS-STIRRER CVR
31WCI 5303011773
32WCI 5303269830
33SEAL-FOAM
37SPACER-RACK (4)
