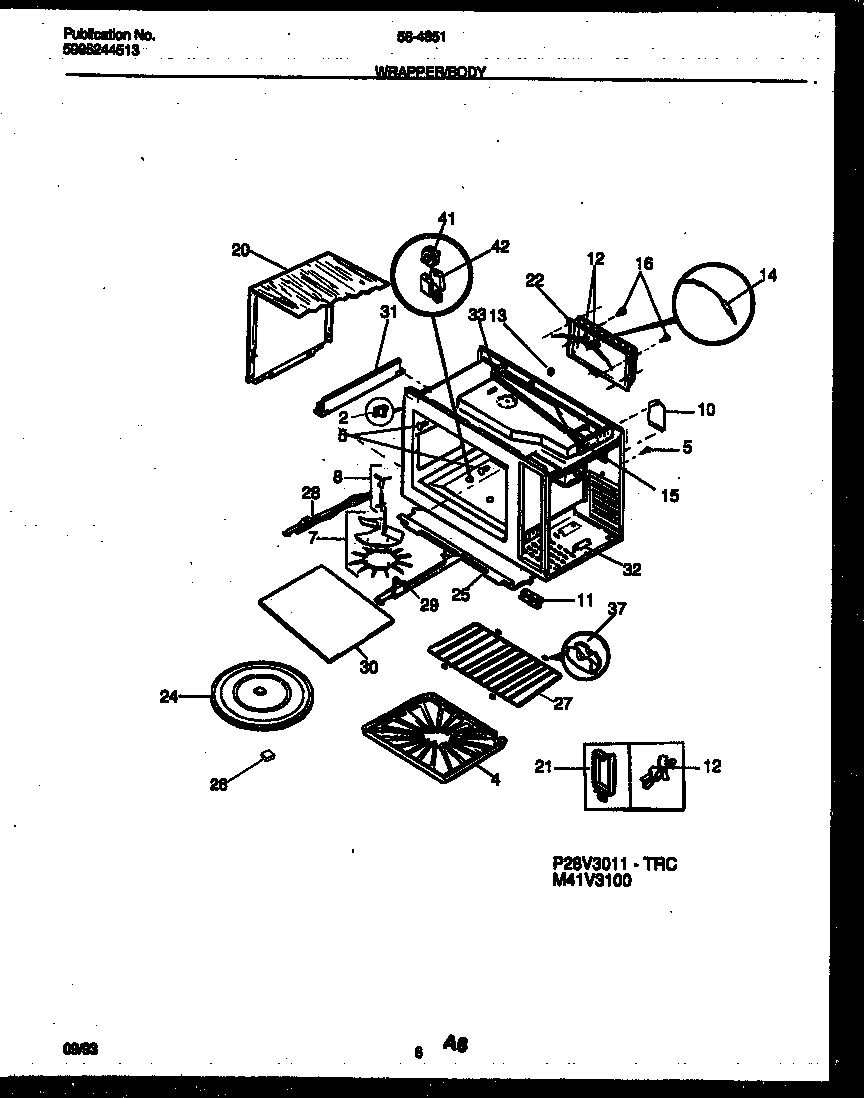

56-4851-10-05 05 – WRAPPER AND BODY PARTS

56-4851-10-05 05 – WRAPPER AND BODY PARTS

Written by

in

56-4851-10-05 05 – WRAPPER AND BODY PARTS

Products

PositionProduct
*89853DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
*89853SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
*898535303321319 Frigidaire Refrigerator White Touch Up Paint
23203010 Frigidaire Clip
4GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
5WCI 5303291811
7FAN-STIRRER
8WCI 5303922010
10WCI 5303212775
11AWCI 5303273916
11BRACKET-CONT PNL SUPT
12WCI 5303212788
13WCI 5303280263
14WCI 5303212800
15Nut
16WCI 394027600
20AWCI 5303273263
20WCI 5303283483
21CLIP
22WCI 5303269958
24TRAY-ROUND
25SHIELD-BOTTOM
26BUSHING-MOTOR
27RACK
28CHANL-SUPT LH
29CHANL-SUPT RH
30GLASS-STIRRER CVR
31WCI 5303011773
32WCI 5303269830
33SEAL-FOAM
37SPACER-RACK (4)
41WCI 317005701
42WCI 317008401
