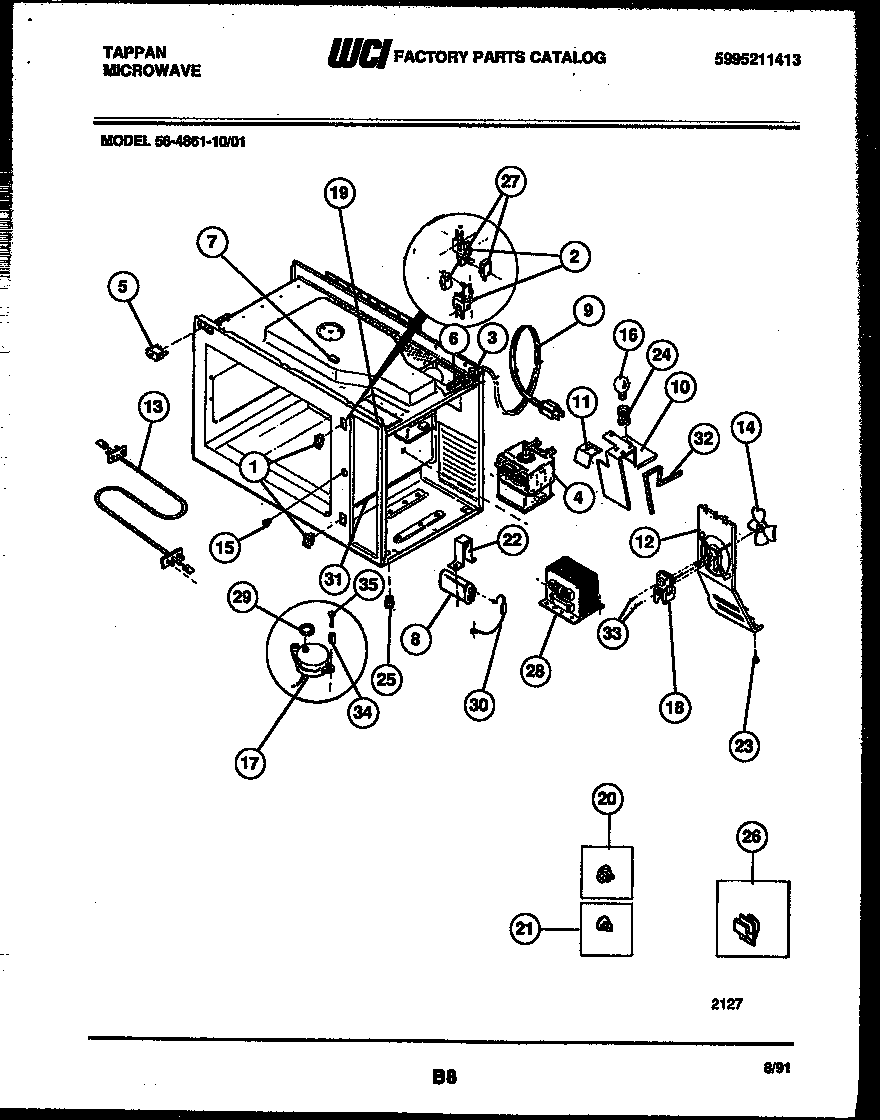

56-4861-10-01 04 – FUNCTIONAL PARTS

Products

Position	Product
*55684	WCI 5303274085
*55684	HEX NUT
*55684	WCI 5303274084
*55684	WCI 5303017865
*55684	WCI 5303273296
*55684	SCREW – TRANS (4) (NON-ILLUSTRATED)
1	WCI 5303212767
2	BRKT-SWITCH-LOWER
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	SPACER
8	WCI 5303269608
9	WCI 5303212774
10	WCI 5303269831
11	WCI 5303269832
12	WCI 5303269833
13	WCI 5303212785
14	WCI 5303269834
15	WCI 5308037644
16	LAMP-120V
17	WCI 5303212920
18	WCI 5303922053
19	Nut
20	PLUG-BUTTON
21	PLUG-BUTTON TRAY (2)
22	WCI 5303013771
23	WCI 5303269846
24	SOCKET, OVEN LAMP, 120V
25	FOOT (4)
26	SUPPORT RACK (8)
27	WCI 5303203636
28	WCI 5303212811
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30	WCI 5303269837
31	WCI 5303212845
32	SEAL-FOAM CUT TO SIZE
33	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
34	SPACER-MOTOR
35	SCREW – TRIAC
