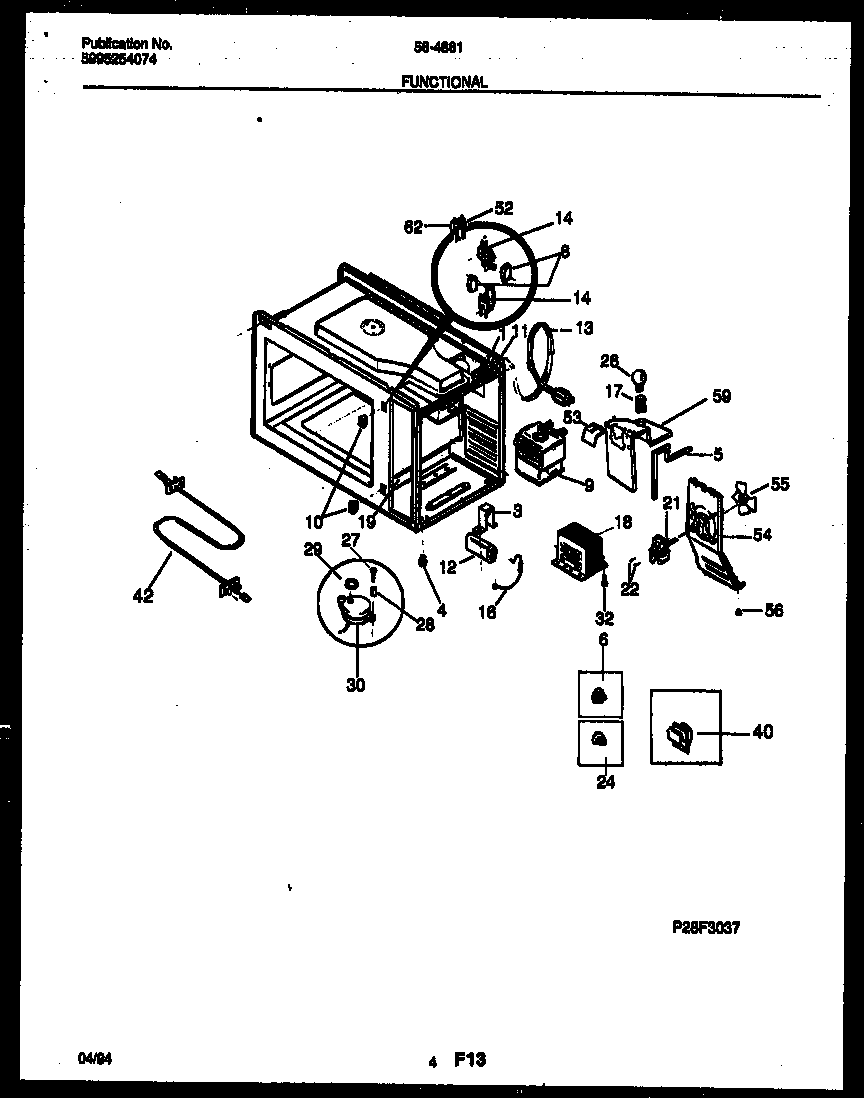

56-4861-10-06 04 – FUNCTIONAL PARTS

56-4861-10-06 04 – FUNCTIONAL PARTS

Written by

in

56-4861-10-06 04 – FUNCTIONAL PARTS

Products

PositionProduct
*10093WCI 317000407
1FUSE-20 AMP
3WCI 5303013771
4WCI 5303295314
5SEAL-FOAM CUT TO SIZE
6PLUG-BUTTON
8WCI 5303203636
9WCI 5303206781
10WCI 5303212767
11WCI 5303212769
12WCI 5303269608
13WCI 317005401
14WCI 317000702
16WCI 5303269837
17SOCKET, OVEN LAMP, 120V
18WCI 317016901
19WCI 5303273954
21WCI 5303922053
22WCI 317004703
22AHEX NUT
24PLUG-BUTTON TRAY (2)
26LAMP-120V
27WCI 317009501
28SPACER-MOTOR
29WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30AWCI 5303292336
30WCI 317005501
30BWCI 317003203
32SCREW – TRANS (4) (NON-ILLUSTRATED)
40SUPPORT RACK (8)
42WCI 5303212785
42AWCI 317006202
52WCI 317005104
53WCI 5303269832
54WCI 5303269833
55WCI 5303269834
56WCI 5303269846
59WCI 5303286094
62WCI 317005103
