56-4878-10-02 04 – POWER CONTROL

56-4878-10-02 04 – POWER CONTROL

Written by

in

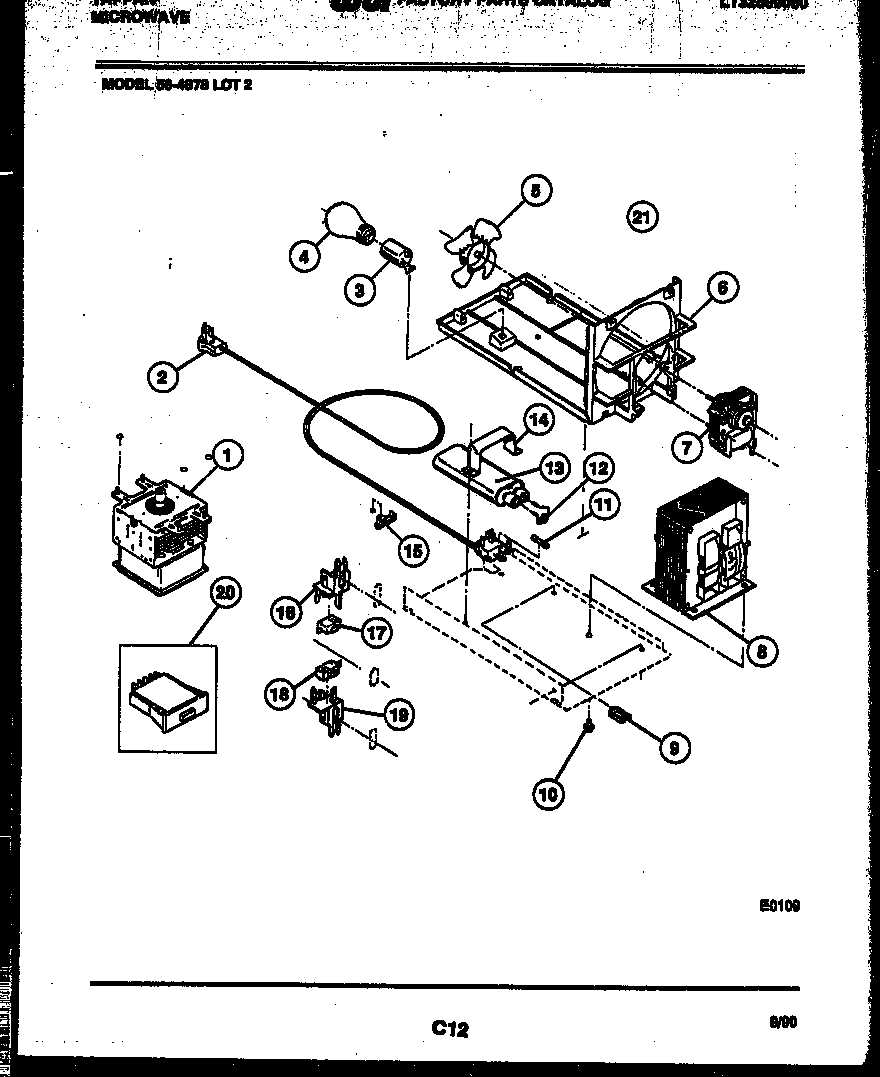

56-4878-10-02 04 – POWER CONTROL

Products

PositionProduct
*41268WCI 5303018251
*41269WCI 5303018853
*41269HARNESS-BROWNER
*41268WCI 191T75F159
*41268INSULATOR
1WCI 5303206781
2CORD-POWER
3WCI 5303091197
4316538904 Frigidaire Oven Lamp Light
5WCI 5303203192
6DUCT-AIR
7ASCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
7BHEX NUT
7WCI 5308037636
8WCI 5308037626
9CLIP
10WCI 5303013904
11FUSE-20 AMP
12DIODE HIGH VOLTAGE
13CAPACITOR – HV
14WCI 5303013771
15WCI 5303091280
18WCI 5303203636
19BRACKET (2)
20SWITCH-MONITOR
21SEAL-FOAM CUT TO SIZE
