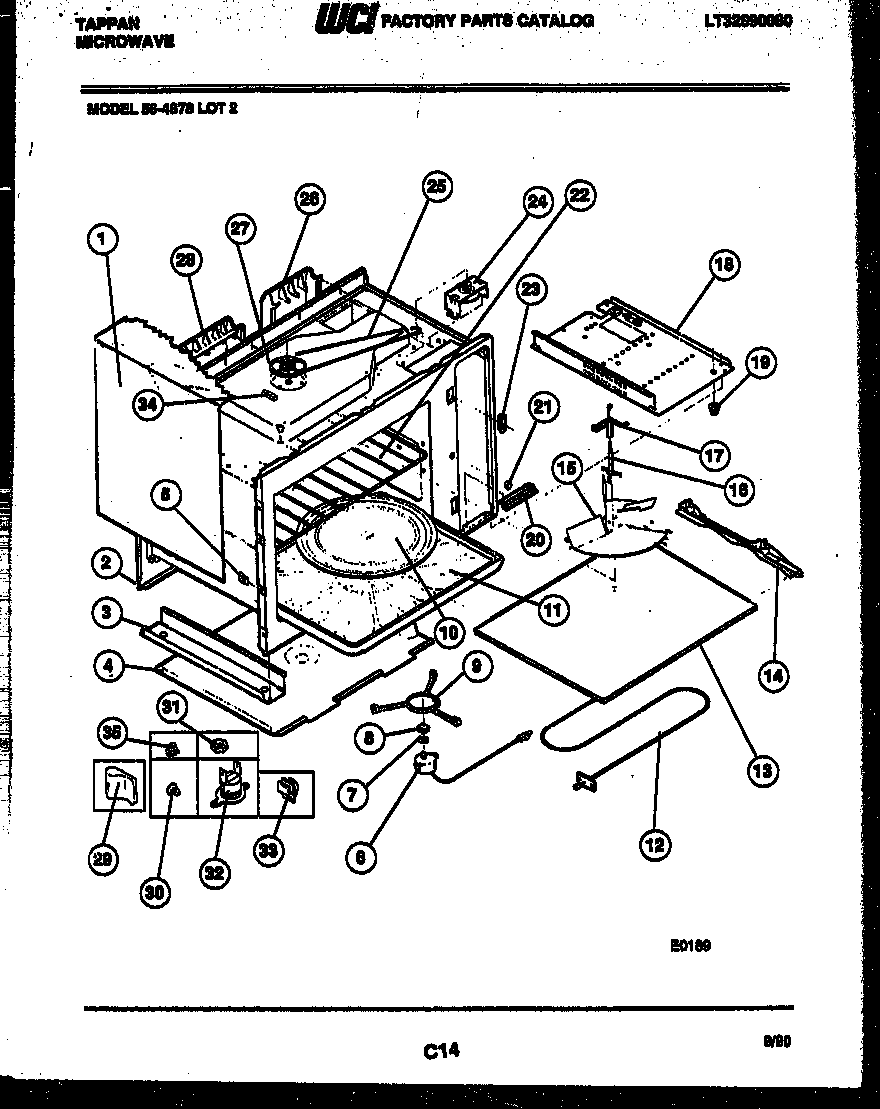

56-4878-10-02 05 – BODY PARTS

Products

Position	Product
*41272	SCREW-WRAPPER (13)
*41272	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WRAPPER (WOODGRAIN)
3	WCI 5303011773
4	SHIELD – BOTTOM
5	3203010 Frigidaire Clip
6	WCI 5308037652
7	WASHER
8	WCI 5303922044
9	SUPPORT-ROLLERS
10	TRAY-ROUND
11	GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
12	ELMNT-BROWNER
13	GLASS-STIRRER CVR
14	CHANL-SUPT LH
14A	CHANL-SUPT RH
15	WCI 5308037708
16	WCI 5303202875
17	WCI 5303011826
18	WCI 5303210624
19	FOOT (4)
20	BRACKET
21	WCI 5308037644
22	RACK
23	BEZEL-LATCH (2)
24	MOTOR – PULLEY
25	WCI 5303011495
26	WCI 5303012196
27A	WASHER-PULLEY
27	WCI 5303013647
28	WCI 5303201371
29	WCI 5303012322
30	PLUG-BUTTON TRAY (2)
31	NUT, TWIST
32	WCI 5303202107
33C	SEAL-FOAM
33B	WCI 5303018849
33A	SHIELD-LIGHT (NON-ILLUSTRATED)
33	SUPPORT RACK (8)
34	SPACER – WRAPPER
35	PLUG-BUTTON
