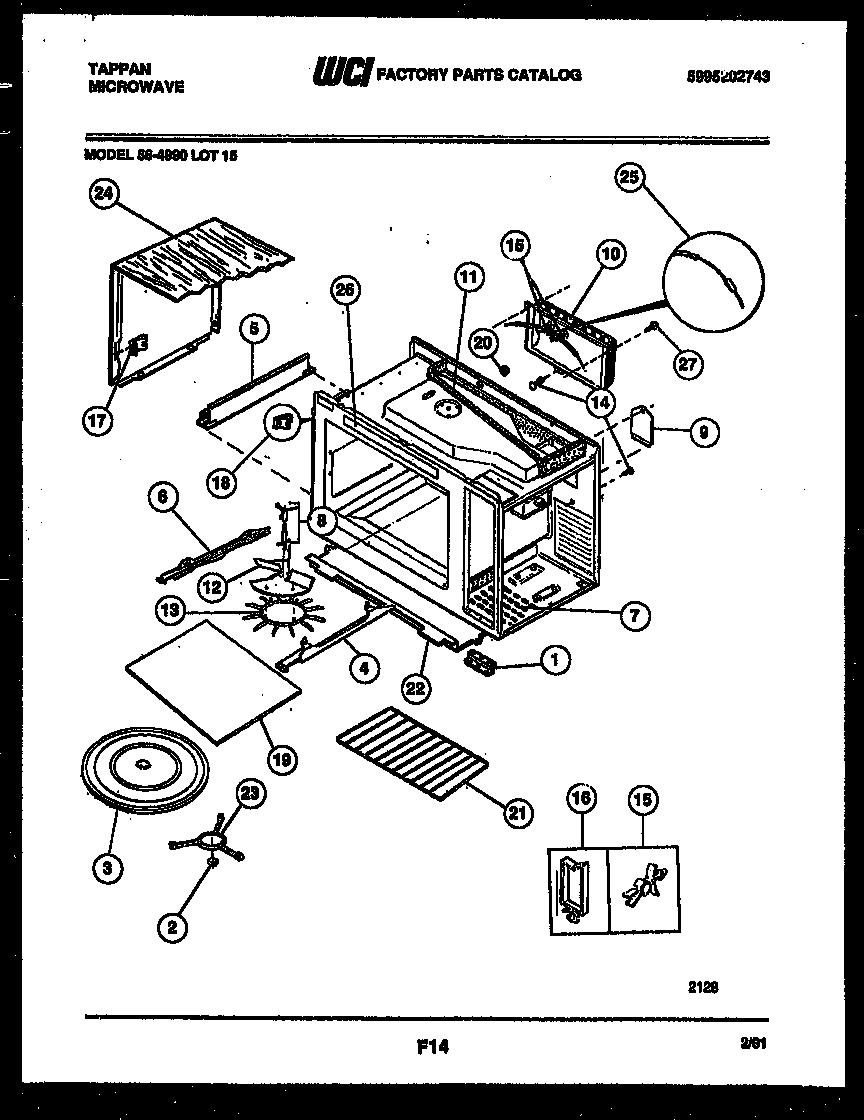

56-4990-10-15 05 – WRAPPER AND BODY PARTS

Products

Position	Product
1	BRACKET
2	BUSHING-MOTOR
3	TRAY-ROUND
4	CHANL-SUPT RH
5	WCI 5303011773
6	CHANL-SUPT LH
7	WCI 5303269830
8	WCI 5303922010
9	WCI 5303212775
10	WCI 5303269958
11	SEAL-FOAM
12	WCI 5303269835
13	WCI 5303269836
14	PLUG, BUTTON, WHITE, (2)
15	WCI 5303212788
16	CLIP
17	WCI 5303012322
18	3203010 Frigidaire Clip
19	GLASS-STIRRER CVR
20	WCI 5303212795
21	RACK
22	SHIELD – BOTTOM
23	SUPPORT-ROLLERS
24A	DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
24	WCI 5303271462
25	WCI 5303212800
26B	SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
26	WCI 5303018849
26A	SCREW-WRAPPER (13)
27	WCI 5303271024
