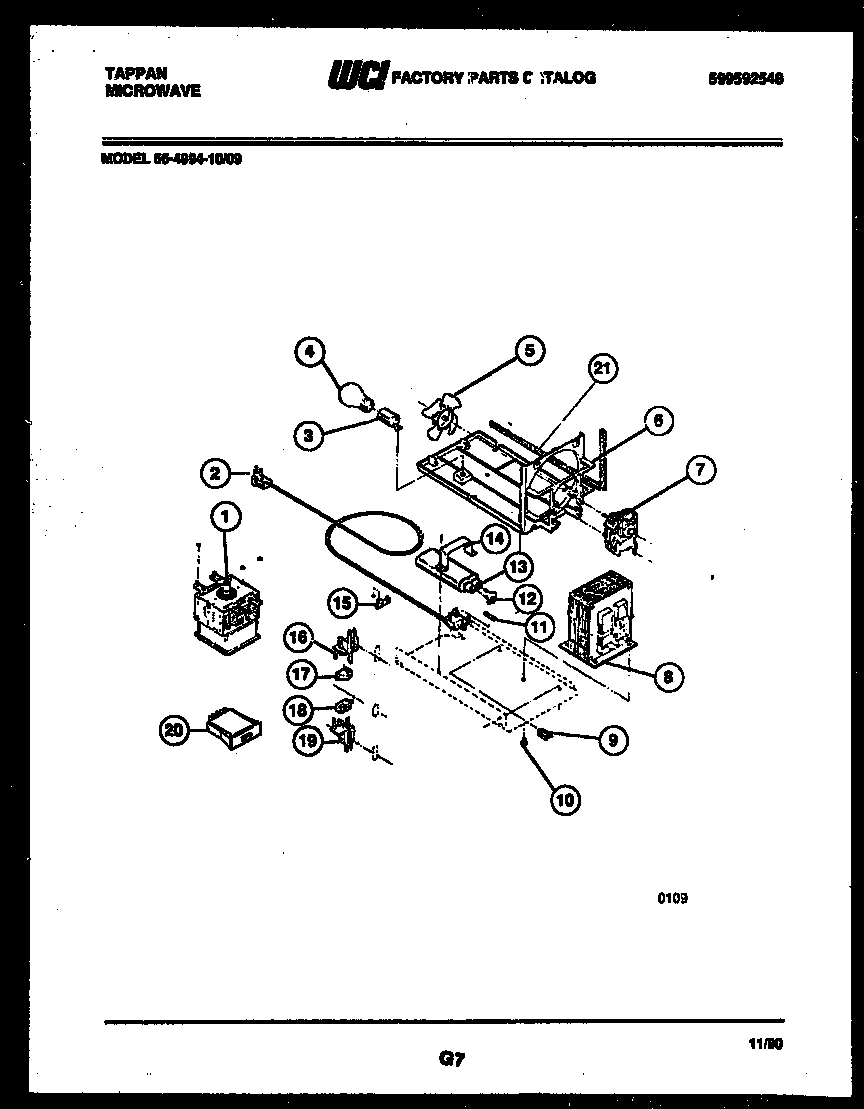

56-4994-10-09 04 – POWER CONTROL

Products

Position	Product
1	WCI 5303206781
2	CORD-POWER
3	WCI 5303091197
4	316538904 Frigidaire Oven Lamp Light
5	WCI 5303203192
6	DUCT-AIR
7	WCI 5308037636
8	WCI 5308037626
9	CLIP
10	SCREW - TRANS (4) (NON-ILLUSTRATED)
11	FUSE-20 AMP
12A	WCI 191T175F174
12	DIODE HIGH VOLTAGE
13	CAPACITOR - HV
14	WCI 5303013771
15	WCI 5303091280
18	WCI 5303203636
19	BRACKET (2)
20E	WCI 5303202107
20B	WCI 08037710
20D	SHIELD-LIGHT (NON-ILLUSTRATED)
20	SWITCH-MONITOR
20A	INSULATOR
20C	WCI 08037711
21	SEAL-FOAM CUT TO SIZE
