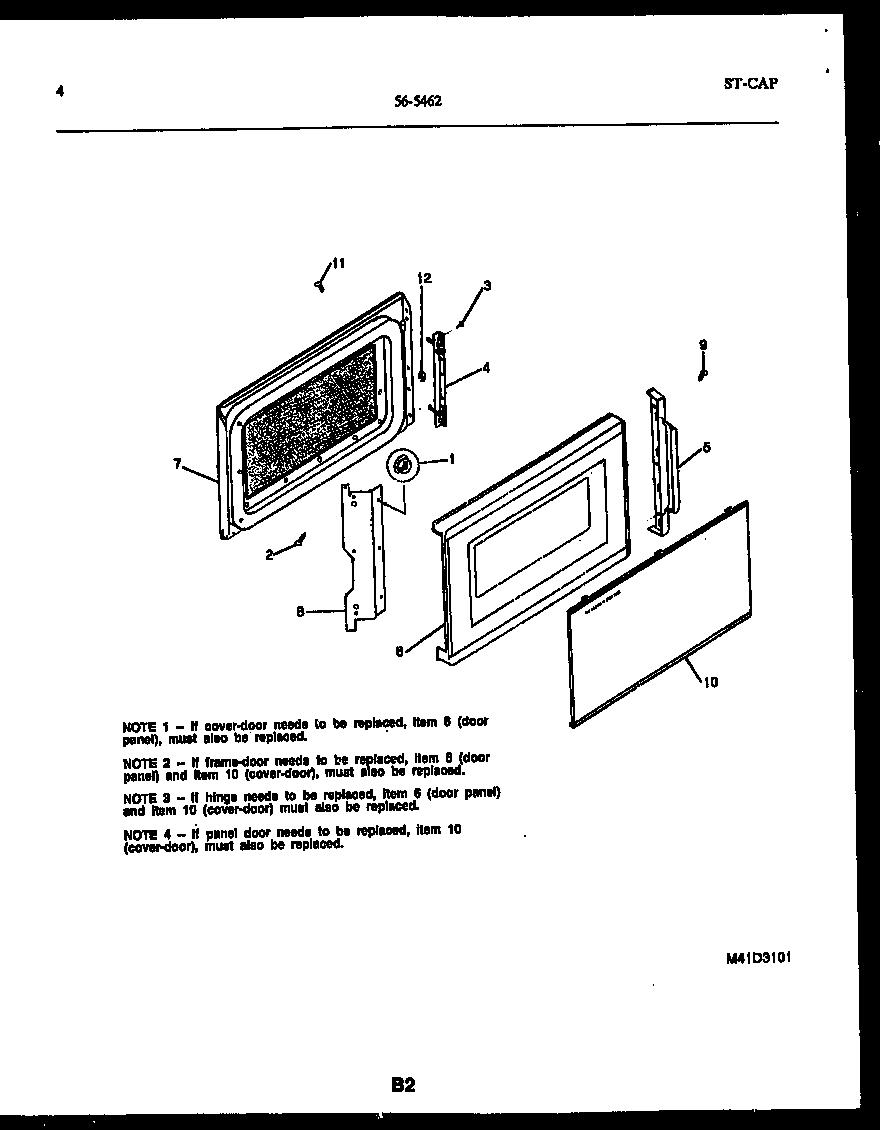

56-5462-10-01 03 – DOOR PARTS

Products

Position	Product
2	SCREW-DOOR (4)
3	SCREW-LATCH (2)
4	ANGLE-HOOK ASSY
5	HANDLE-DOOR
6	PANEL-DOOR, (IF PANEL DOOR NEEDS TO BE REPLACED, ITEM 10
7	FRAME-DOOR, WHITE, SERVICE, (IF FRAME-DOOR NEEDS TO BE R
8	HINGE-DOOR, WHITE, (IF HINGE NEEDS TO BE REPLACED, ITEM6 (DOOR PANEL) AND ITEM10 (COVER-DOOR), MUST
9	5303300265 Frigidaire Oven Screw
10	COVER-DOOR, (INCLUDES TAPE), (IF COVER-DOOR NEEDS TO BEREPLACED, ITEM 6 (DOOR PANEL), MUST ALSO BE R
11	SCREW-DOOR STRIKE
12	HEX NUT
