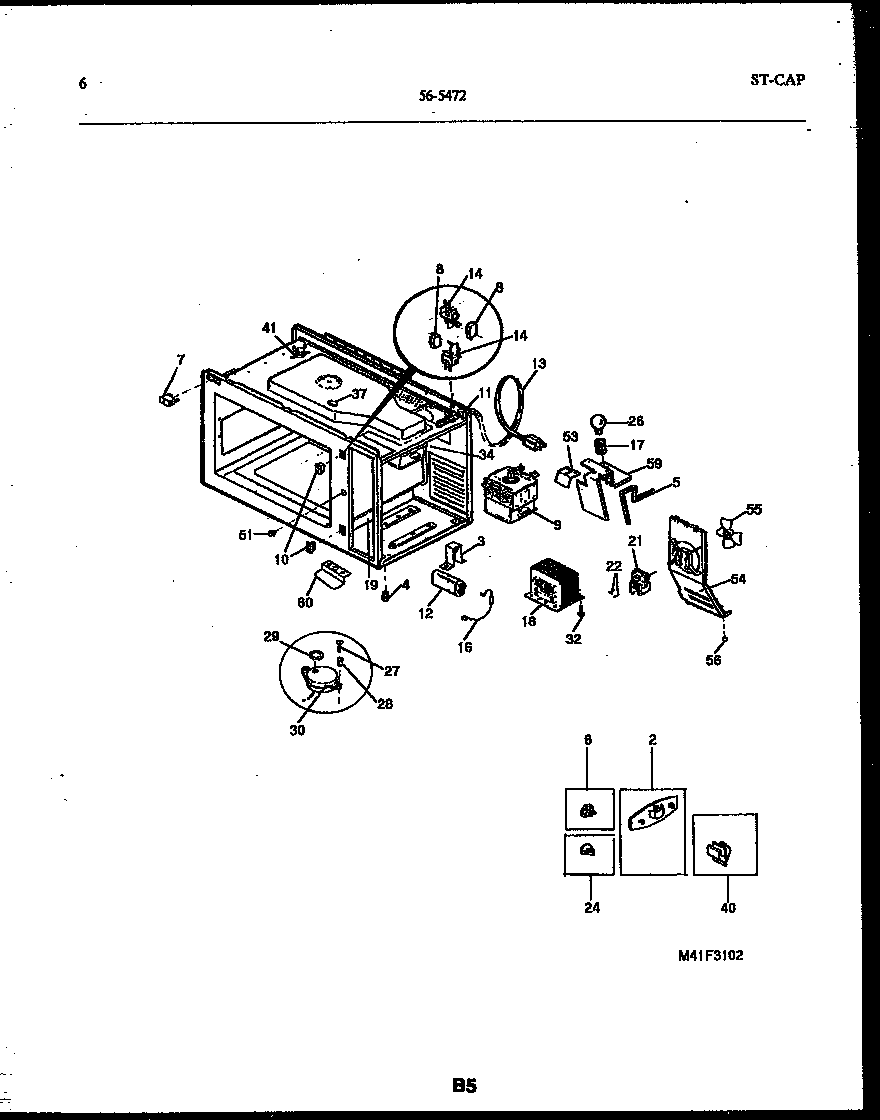

56-5472-10-01 04 – FUNCTIONAL PARTS

Products

Position	Product
*62589	5303017863 Frigidaire Screw
*62589	WCI 317000401
1	FUSE-20 AMP
2	PLUG-BUTTON
3	WCI 5303013771
4	FOOT (4)
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
7	SWITCH-MONITOR
8	WCI 5303203636
9	WCI 5303278735
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303277541
13	WCI 5303283617
14	BRKT-SWITCH-LOWER
16	WCI 5303269837
17	SOCKET, OVEN LAMP, 120V
18	WCI 5303279131
19	WCI 5303273954
21	WCI 5303922053
22	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
22A	HEX NUT
24	PLUG-BUTTON TRAY (2)
26	LAMP-120V
27	WCI 5303200767
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30	WCI 5303212920
30A	WCI 5303274085
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
37	SPACER
40	SUPPORT RACK (8)
41	WCI 5303283522
51	WCI 5308037644
53	WCI 5303269832
54	WCI 5303269833
55	WCI 5303269834
56	WCI 5303269846
59	WCI 5303282852
60	BRACKET, ANGLE, FRONT RIGHT BTM
