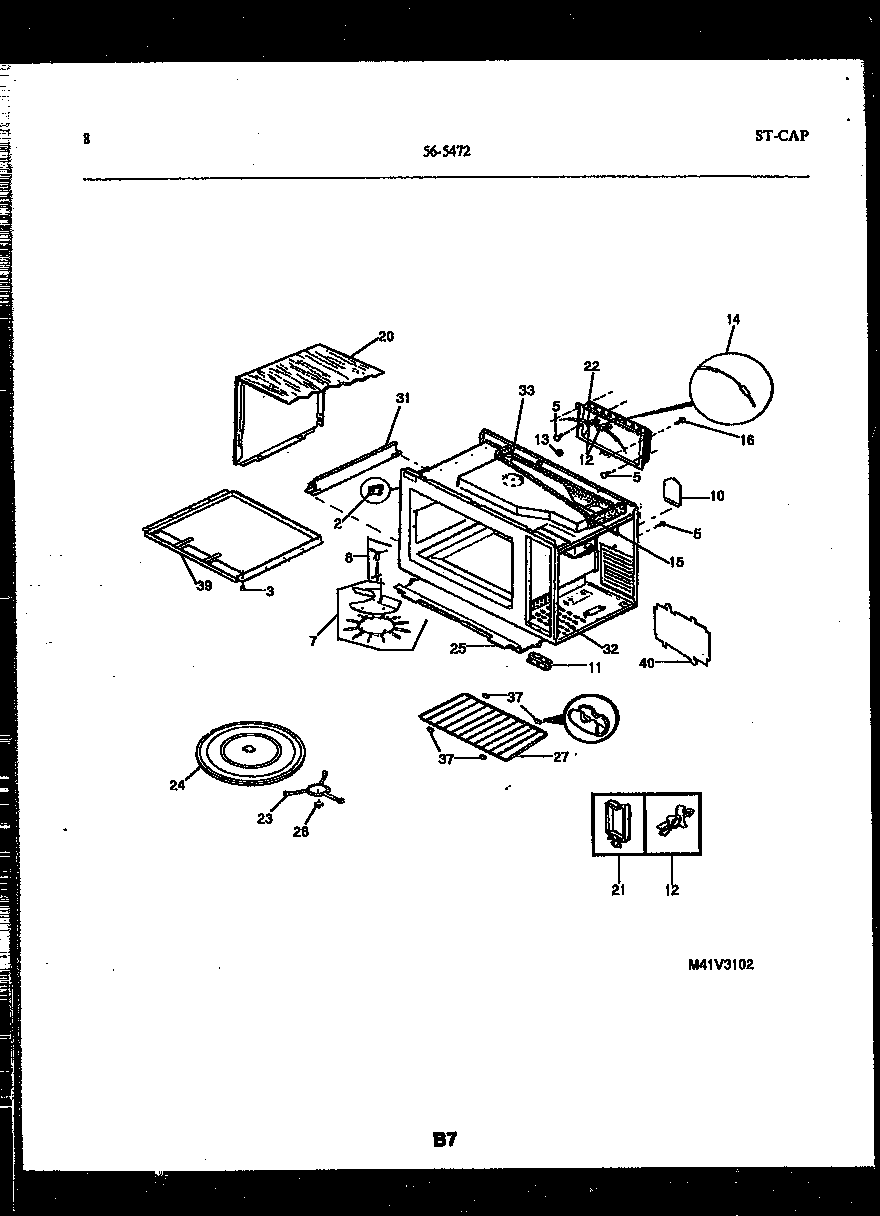

56-5472-10-01 05 – WRAPPER AND BODY PARTS

56-5472-10-01 05 – WRAPPER AND BODY PARTS

Written by

in

56-5472-10-01 05 – WRAPPER AND BODY PARTS

Products

PositionProduct
*62594WCI 5303269641
*625945303321319 Frigidaire Refrigerator White Touch Up Paint
23203010 Frigidaire Clip
3RIVET-COVER (8)
5PLUG, BUTTON, WHITE, (2)
7FAN-STIRRER
8WCI 5303922010
10WCI 5303212775
11BRACKET-CONT PNL SUPT
11AWCI 5303273916
12WCI 5303212788
13WCI 5303280263
14WCI 317000501
15Nut
16WCI 5303271024
20WRAPPER-TOP & SIDES
20BWCI 5303269631
20AWCI 5303273263
21CLIP
22WCI 5303269958
23SUPPORT-ROLLERS
24TRAY-ROUND
25SHIELD-OVEN BOTTOM, BLACK
26BUSHING-MOTOR
27RACK
31WCI 5303011773
32WCI 5303269830
33SEAL-FOAM
37SPACER-RACK (4)
39COVER, STIRRER
40WCI 5303283613
