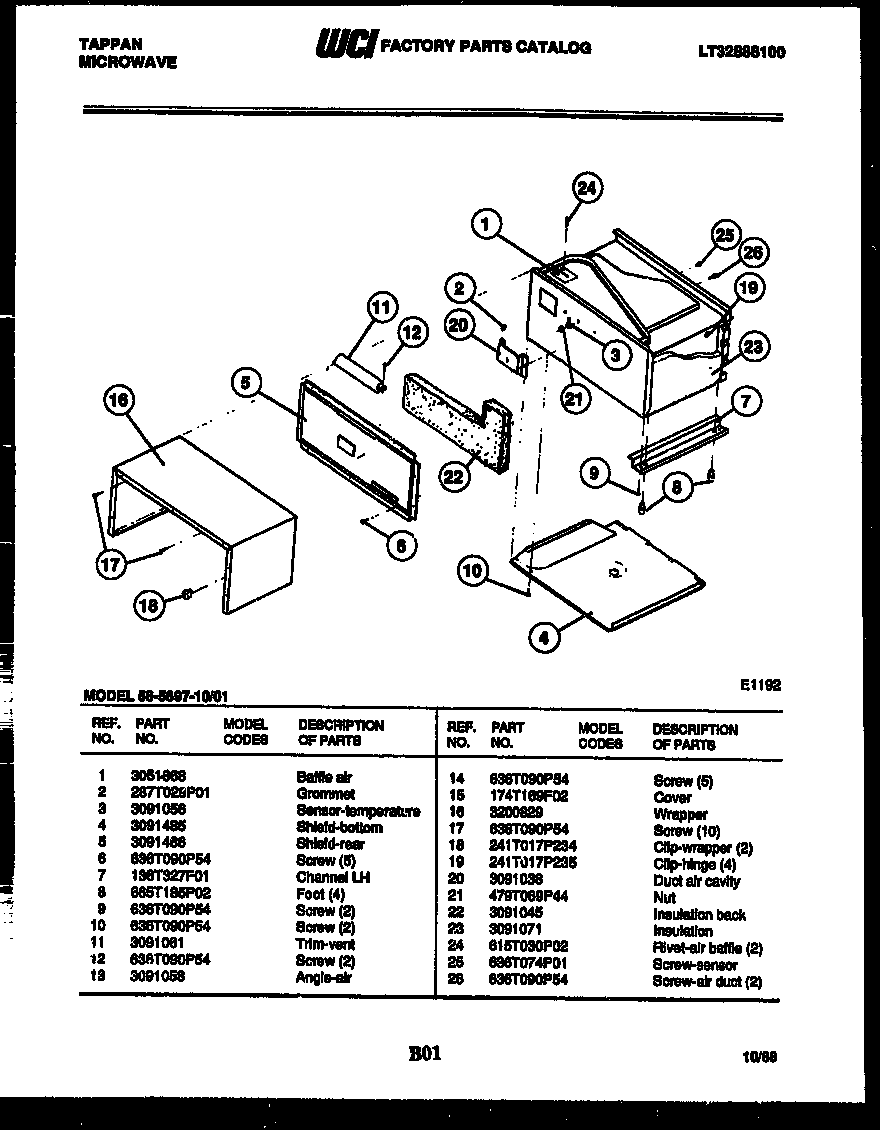

56-5897-10-01 06 – WRAPPER AND BODY PARTS

56-5897-10-01 06 – WRAPPER AND BODY PARTS

Written by

in

56-5897-10-01 06 – WRAPPER AND BODY PARTS

Products

Position	Product
1	COVER-FLUE
2	WCI 287T029P01
3	WCI 3091056
4	WCI 3091485
5	WCI 3091486
7	WCI 136T327F01
8	SPACER FOOT
11	WCI 3091061
13	ANGLE-AIR BAFFLE
15	WCI 174T169F02
16	WCI 3200829
18	FASTNER, WRAPR (2)
19	3203010 Frigidaire Clip
20	WCI 3091038
21	WCI 479T069P44
22	WCI 3091045
23	WCI 3091071
24	WCI 615T030P02
25	WCI 636T074P01
26	SCREW (8) (NON-ILLUSTRATED)
