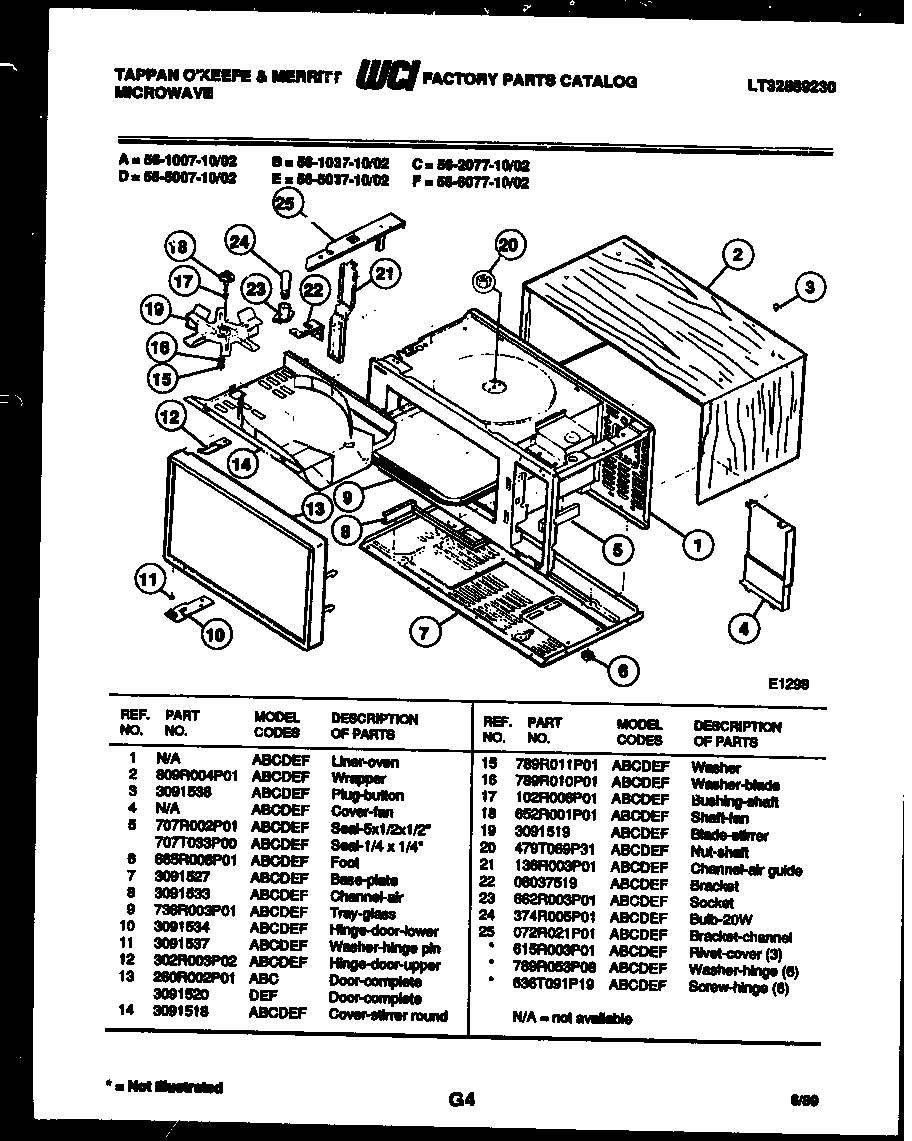

56-6077-10-02 04 – UPPER BASIC BODY PARTS

56-6077-10-02 04 – UPPER BASIC BODY PARTS

Written by

in

56-6077-10-02 04 – UPPER BASIC BODY PARTS

Products

Position	Product
*20083	SCREW-HINGE (6)
*20083	RIVET-COVER (3)
*20083	WCI 789R053P08
2	WCI 809R004P01
3	WCI 3091538
5	WCI 707R002P01
5A	TAPE, FOAM 29“
6	FOOT
7	WCI 3091527
8	WCI 3091533
9	WCI 736R003P01
10	WCI 3091534
11	WCI 3091537
12	WCI 302R003P02
13	WCI 3091520
14	WCI 3091518
15	WCI 789R011P01
16	WCI 789R010P01
17	WCI 102R006P01
18	WCI 652R001P01
19	WCI 3091519
20	NUT (NON-ILLUSTRATED)
21	WCI 136R003P01
22	WCI 08037519
23	WCI 662R003P01
24	WCI 374R005P01
25	WCI 072R021P01
