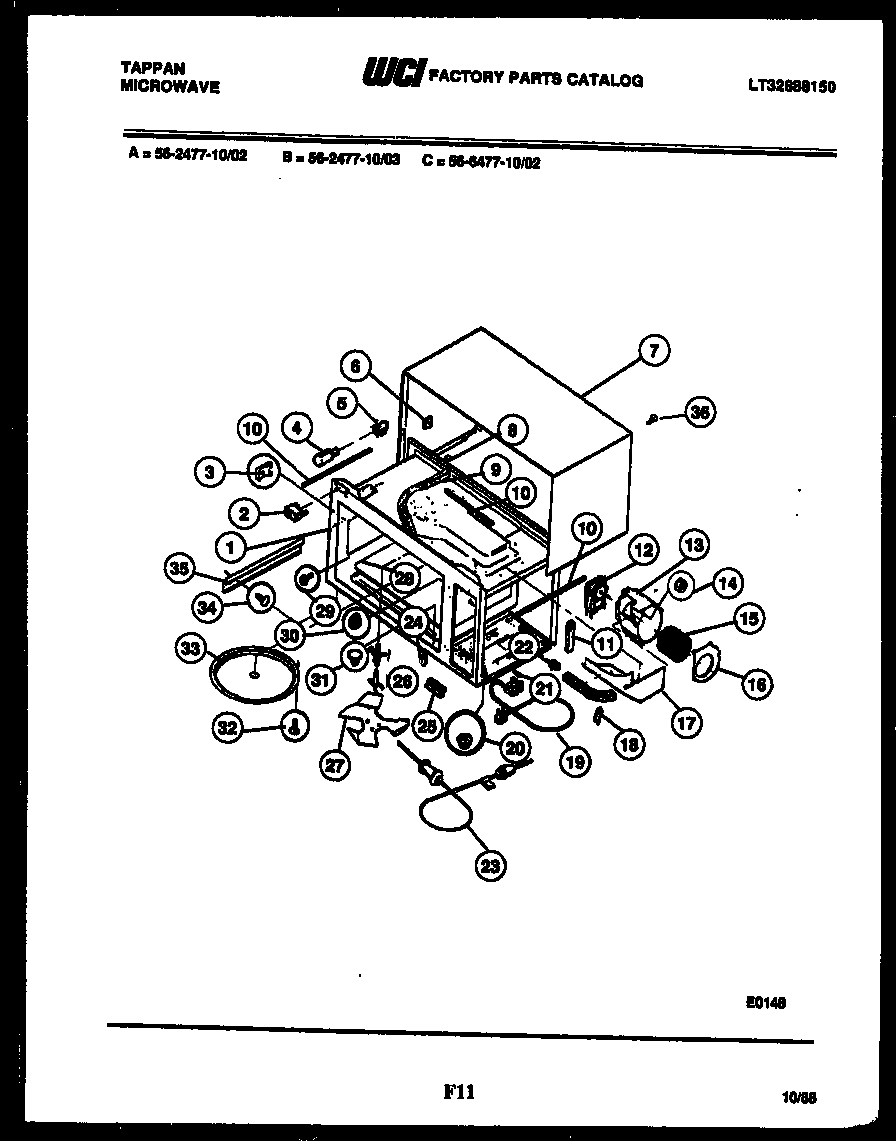

56-6477-10-02 04 – BODY PARTS

Products

Position	Product
*18414	LABEL COOK GUIDE
2	WCI 115T695P13
3	3203010 Frigidaire Clip
4	WCI 374T027P01
5	SOCKET
6	FASTNER, WRAPR (2)
7	WCI 809T025F05
8	SPACER, WRAPPER
9	WCI 115T211P01
10	TAPE, FOAM 29“
11	TAPE, FOAM 9 1/2“
12	FAN MOTOR
13	HSG, BLOWER
14	NUT STIRRER SHAFT TO FAN
15	WCI 799T009P01
16	COVER, BLWR HSG.
17	WCI 211T066P01
18	FASTNR WIRE CLIP
19	CORD, POWER
20	KIT, FOOT
21	WCI 115T262P01
22	WCI 597T048P01
23	WCI 115T563P03
24	BEZEL – LATCH (ALMD)
25	WCI 072T825F01
26	KIT, STIR SUPT
27	WCI 239T055F01
28	WCI 736T012P01
29	SCREW SW PNL. (7)
30	WCI 479T084P01
31	WCI 557T029P01
32	RIVET ACCORDIAN (NON-ILLUSTRATED)
33	WCI 174T310P01
34	FASTNER CLIP W/REF. NO. 35
35	WCI 024T172P02
36	SCREW (8) (NON-ILLUSTRATED)
