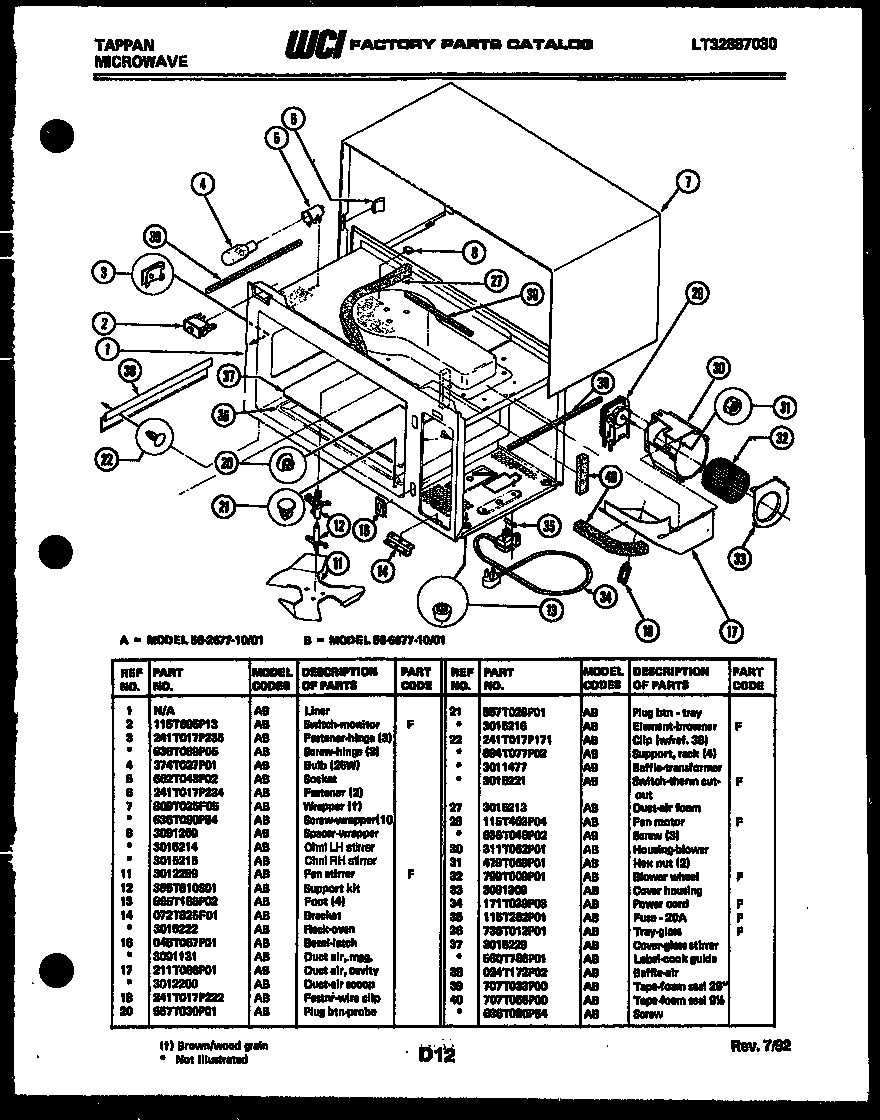

56-6677-10-01 05 – BODY PARTS

Products

Position	Product
2	WCI 115T695P13
3A	WCI 636T069P05
3	3203010 Frigidaire Clip
4	WCI 374T027P01
5	SOCKET
6	FASTNER, WRAPR (2)
7A	SCREW (8) (NON-ILLUSTRATED)
7	WCI 809T025F05
8A	CHANNEL – GLASS SUPPORT LH
8B	CHANNEL – GLASS SUPPORT RH
8	SPACER
11	WCI 3012289
12	KIT, STIR SUPT
13	SPACER FOOT
14	WCI 072T825F01
14A	WIRE RACK (NON-ILLUSTRATED)
16A	WCI 3091131
16	WCI 045T067P01
17	WCI 211T066P01
17A	DUCT-AIR SCOOP (NON-ILLUSTRATED)
18	FASTNR WIRE CLIP
20	PLUG, BTN PROBE (NON-ILLUSTRATED)
21A	WCI 3015216
21	WCI 557T029P01
22A	SUPPORT, RACK
22C	SWITCH-THERMAL CUTOUT
22B	WCI 3011477
22	FASTNER CLIP W/REF. NO. 35
27	DUCT-AIR FOAM
28A	SCREW SW PNL. (7)
28	FAN MOTOR
30	HSG, BLOWER
31	NUT STIRRER SHAFT TO FAN
32	WCI 799T009P01
33	COVER HOUSING
34	WCI 171T039P03
35	WCI 115T262P01
36	WCI 736T012P01
37	WCI 3015229
37A	LABEL COOKING GUIDE (NON-ILLUSTRATED)
38	WCI 024T172P02
39	TAPE, FOAM 29“
40	TAPE, FOAM 9 1/2“
