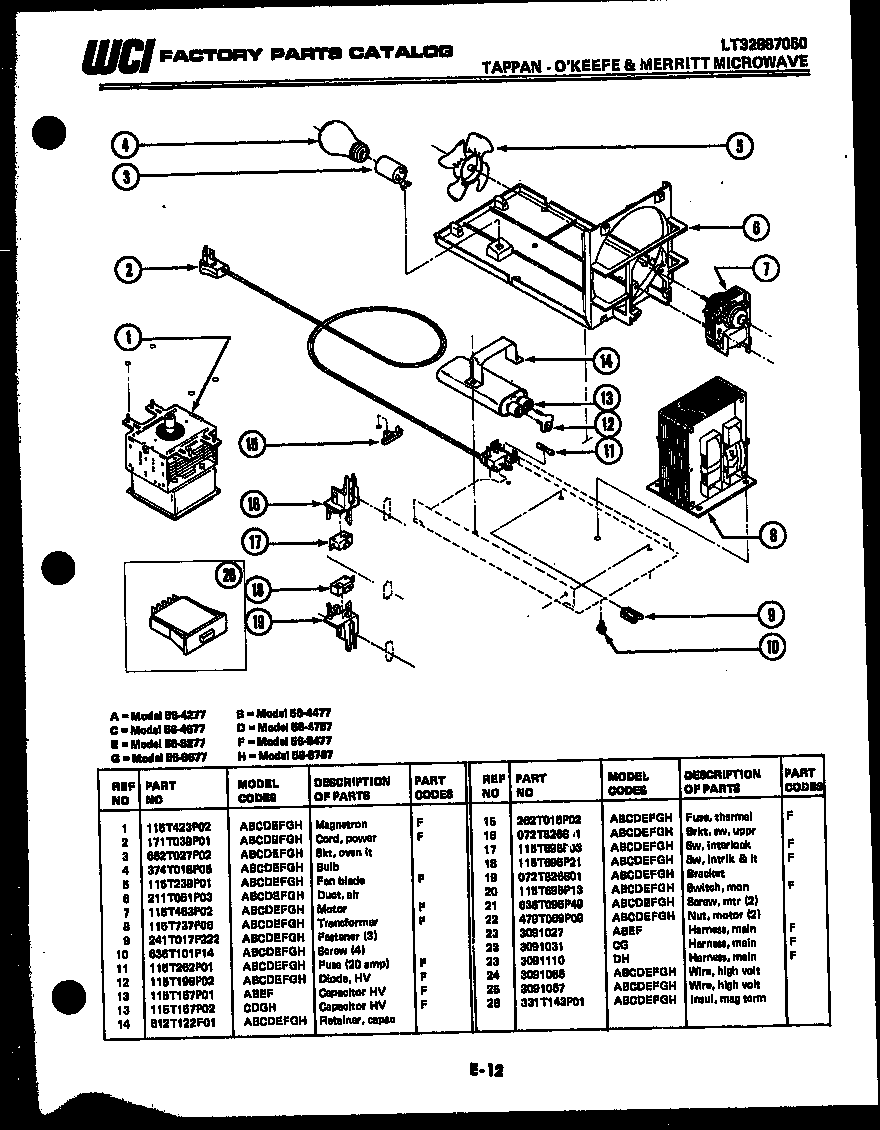

56-8477-10-01 03 – POWER CONTROL

Products

Position	Product
1	WCI 115T423P02
2	CORD, POWER
3	WCI 662T027P02
4	316538904 Frigidaire Oven Lamp Light
5	FAN BLADE TRANSFORMER
6	WCI 211T051P03
7	WCI 115T463P02
8	WCI 115T737P06
9	FASTNR WIRE CLIP
10	SCREW, TRANS (4)
11	WCI 115T262P01
12	DIODE HV
13	CAPAC HI VOLT. NON PCP
14	WCI 612T122F01
15	WCI 262T015P02
17	WCI 115T695P03
18	WCI 115T695P21
19	WCI 072T826S01
20	WCI 115T695P13
21	WCI 636T095P49
22	HEX NUT-TERM BLOCK DISC ASSY 6-32 (NON-ILLUSTRATED)
23	WCI 3091031
24	WCI 3091066
25	WCI 3091067
26	WCI 331T143P01
