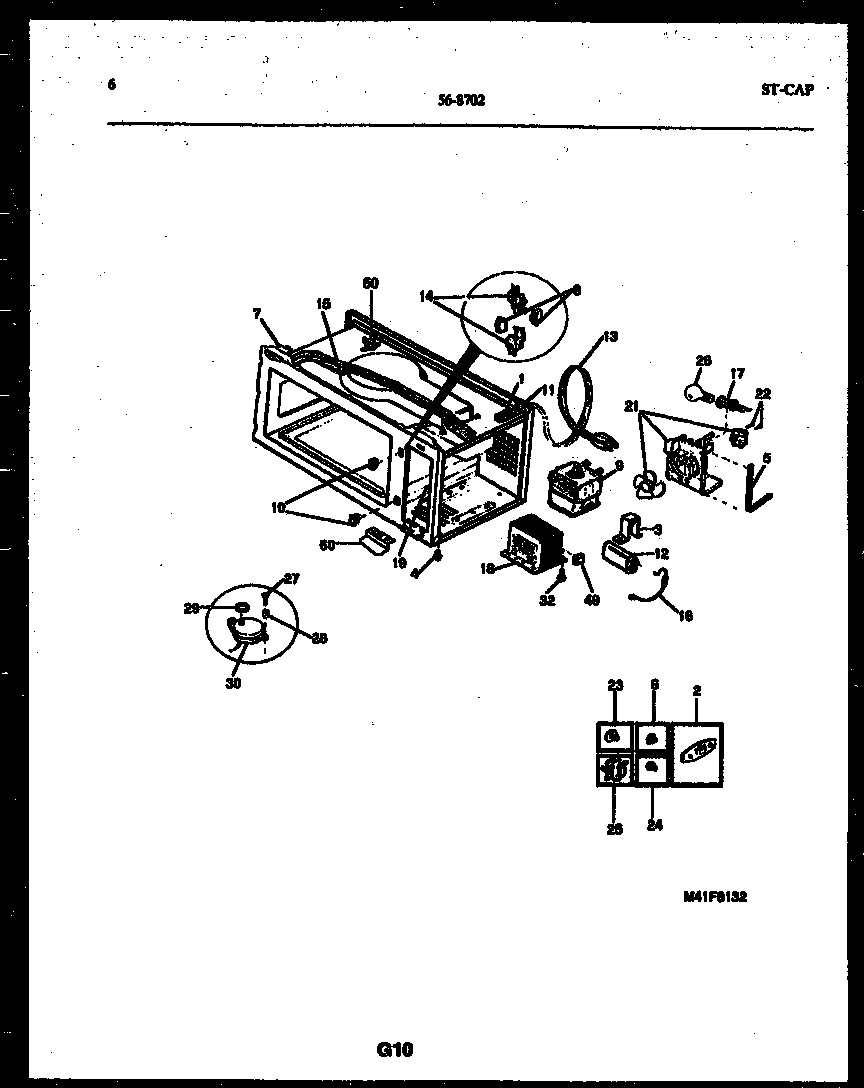

56-8702-10-01 04 – FUNCTIONAL PARTS

Products

Position	Product
*32943	WCI 317000304
*32943	5303017863 Frigidaire Screw
1	FUSE-20 AMP
2	PLUG-BUTTON
3	WCI 5303013771
4	FOOT (4)
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
7	SWITCH-MONITOR
8	WCI 5303203636
9	WCI 5303286175
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303212773
13	WCI 317005403
14	BRKT-SWITCH-LOWER
15	WCI 5303212783
16	WCI 5303212799
17	SOCKET, OVEN LAMP, 120V
18	WCI 5303279131
19	WCI 5303212845
21	WCI 5303922053
22A	HEX NUT
22	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
22B	216273000 Frigidaire Refrigerator Strap
23	PLUG-BUTTON (8)
24	PLUG-BUTTON TRAY (2)
25	WCI 5303212787
26	WCI 5303272172
27	WCI 317009501
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30	WCI 317005501
30A	WCI 5303292336
32	SCREW - TRANS (4) (NON-ILLUSTRATED)
49	WCI 5303278804
50	WCI 5303278810
50A	WCI 5303284335
60	BRACKET, ANGLE, FRONT RIGHT BTM
