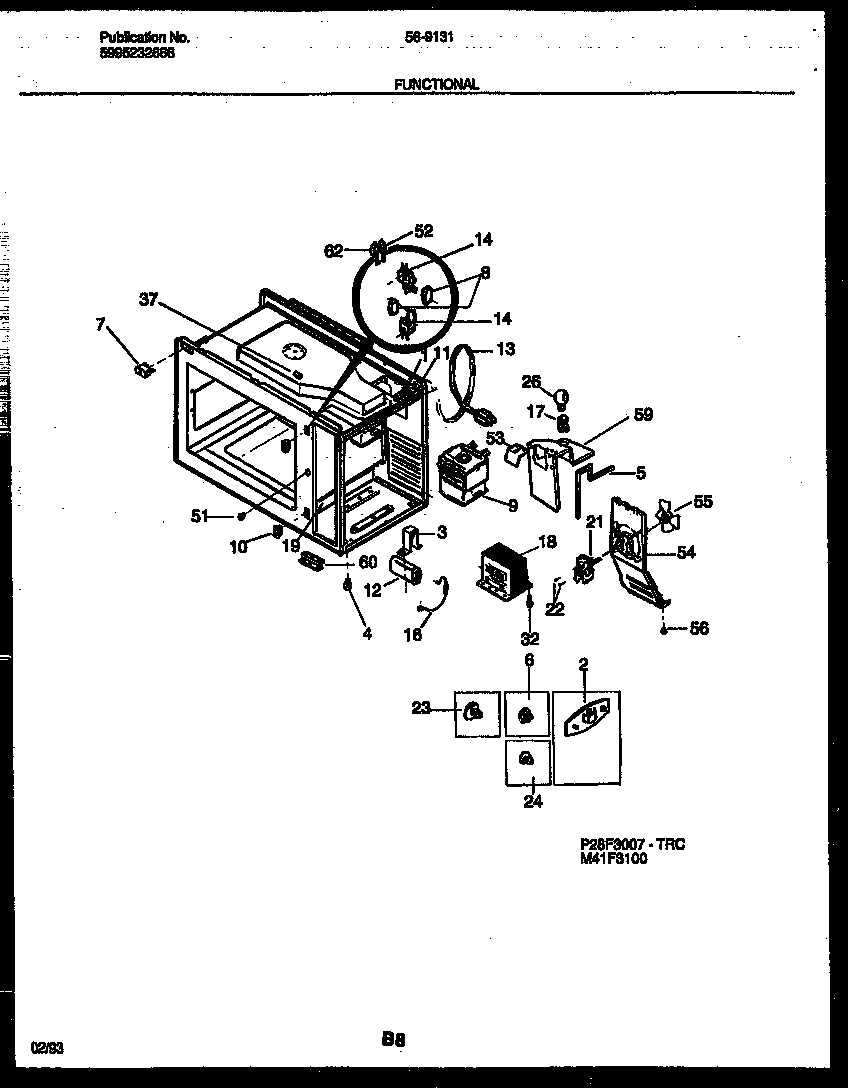

56-9131-10-02 04 – FUNCTIONAL PARTS

Products

Position	Product
*82853	WCI 5303273296
1	FUSE-20 AMP
2	PLUG-BUTTON
3	WCI 5303013771
4	FOOT (4)
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
7	SWITCH-MONITOR
8	WCI 5303203636
9	WCI 5303206781
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303269608
13	WCI 317005401
14	BRKT-SWITCH-LOWER
16	WCI 5303269837
17	SOCKET, OVEN LAMP, 120V
18	WCI 5303212811
19	WCI 5303273954
21	WCI 5303922053
22	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
22A	HEX NUT
23	PLUG-BUTTON (8)
24	PLUG-BUTTON TRAY (2)
26	LAMP-120V
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
37	SPACER
51	WCI 5308037644
53	WCI 5303269832
54	WCI 5303269833
55	WCI 5303269834
56	WCI 5303269846
59	WCI 5303286094
60	BRACKET, ANGLE, FRONT RIGHT BTM
60A	5303017863 Frigidaire Screw
