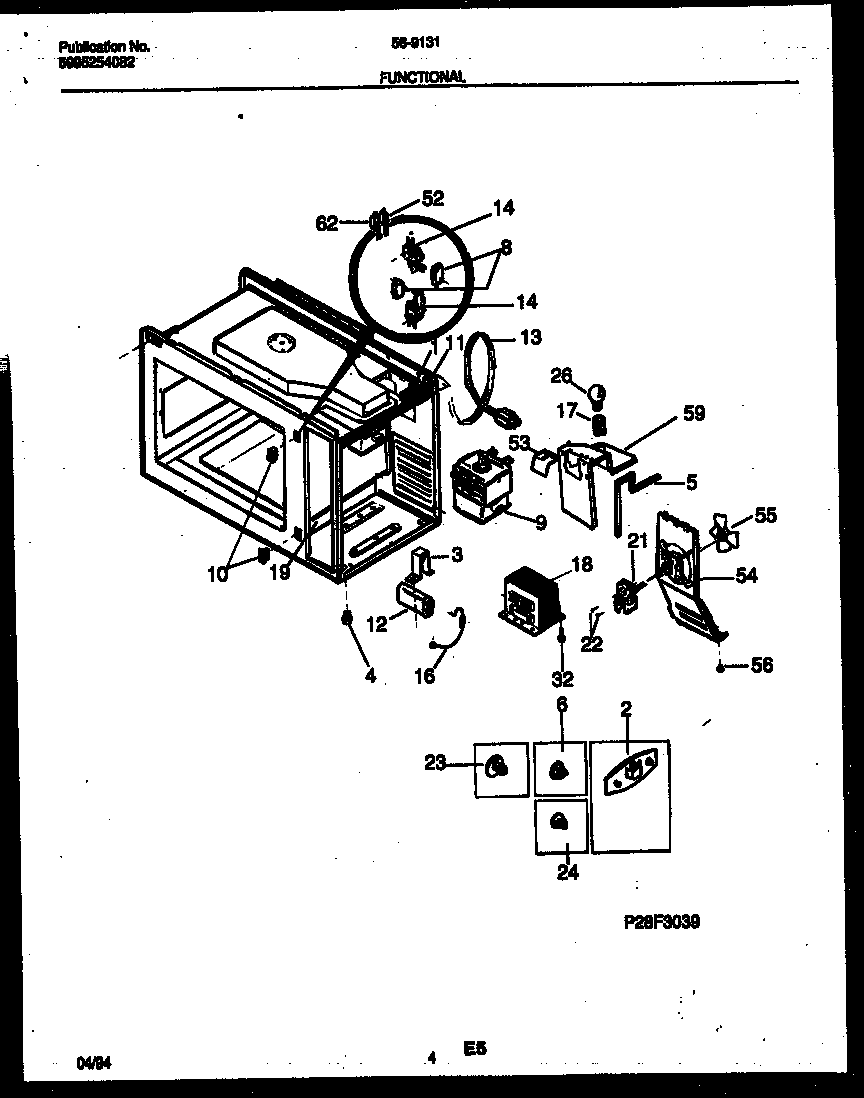

56-9131-10-05 04 – FUNCTIONAL PARTS

56-9131-10-05 04 – FUNCTIONAL PARTS

Written by

in

56-9131-10-05 04 – FUNCTIONAL PARTS

Products

PositionProduct
*10150WCI 317000407
1FUSE-20 AMP
2PLUG-BUTTON
3WCI 5303013771
4WCI 5303295314
5SEAL-FOAM CUT TO SIZE
6PLUG-BUTTON
8WCI 5303203636
9WCI 5303206781
10WCI 5303212767
11WCI 5303212769
12WCI 5303269608
13WCI 317005401
14WCI 317000702
16WCI 5303269837
17SOCKET, OVEN LAMP, 120V
18WCI 317016901
19WCI 5303273954
21WCI 5303922053
22AHEX NUT
22WCI 317004703
23PLUG-BUTTON (8)
24PLUG-BUTTON TRAY (2)
26LAMP-120V
32SCREW – TRANS (4) (NON-ILLUSTRATED)
52WCI 317005104
53WCI 5303269832
54WCI 5303269833
55WCI 5303269834
56WCI 5303269846
59WCI 5303286094
62WCI 317005103
