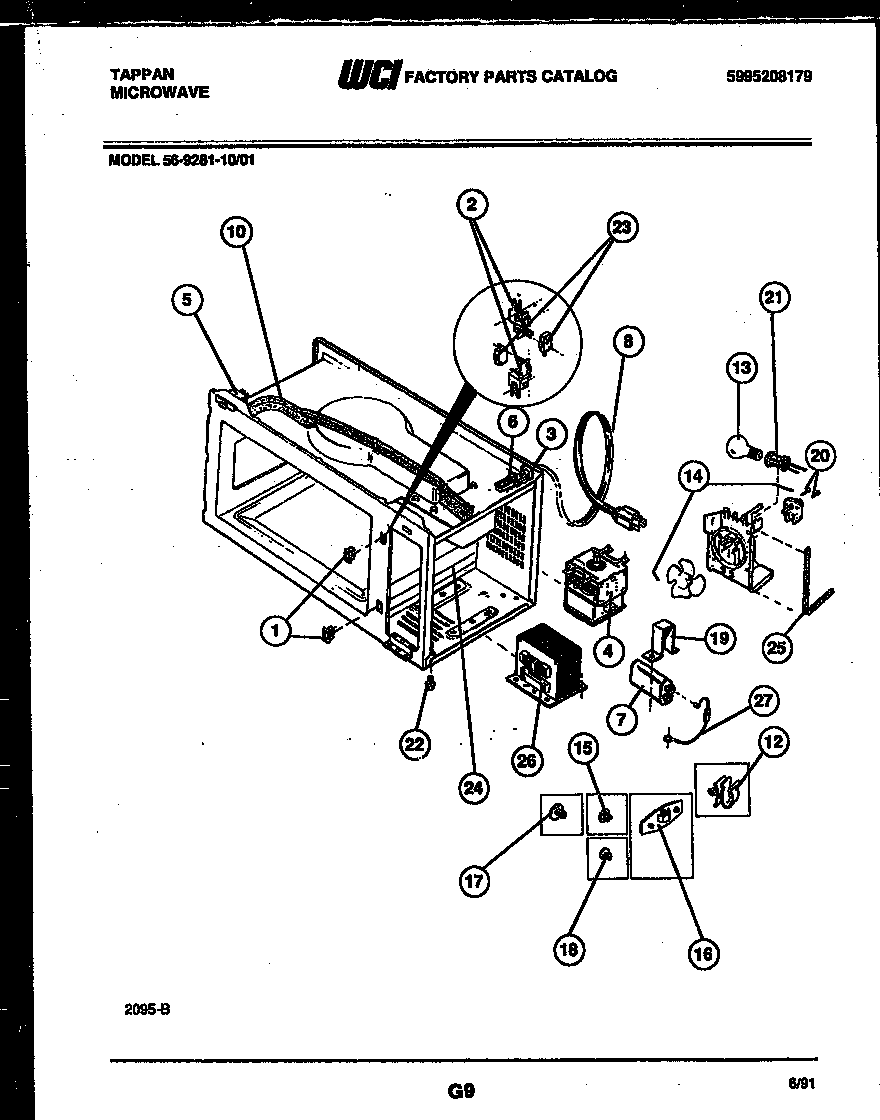

56-9281-10-01 04 – FUNCTIONAL PARTS

Products

Position	Product
*51084	WCI 530801007
*51084	WCI 5303273071
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	WCI 5303212773
8	WCI 5303212774
10	WCI 5303212783
12	WCI 5303212787
13	LAMP-120V
14	WCI 5303922053
15	PLUG-BUTTON
16	PLUG-BUTTON
17	PLUG-BUTTON (8)
18	PLUG-BUTTON TRAY (2)
19	WCI 5303013771
20	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
21	SOCKET, OVEN LAMP, 120V
22	FOOT (4)
23	WCI 5303203636
24	WCI 5303212845
25	SEAL-FOAM CUT TO SIZE
26	WCI 5303212811
27	WCI 5303212799
