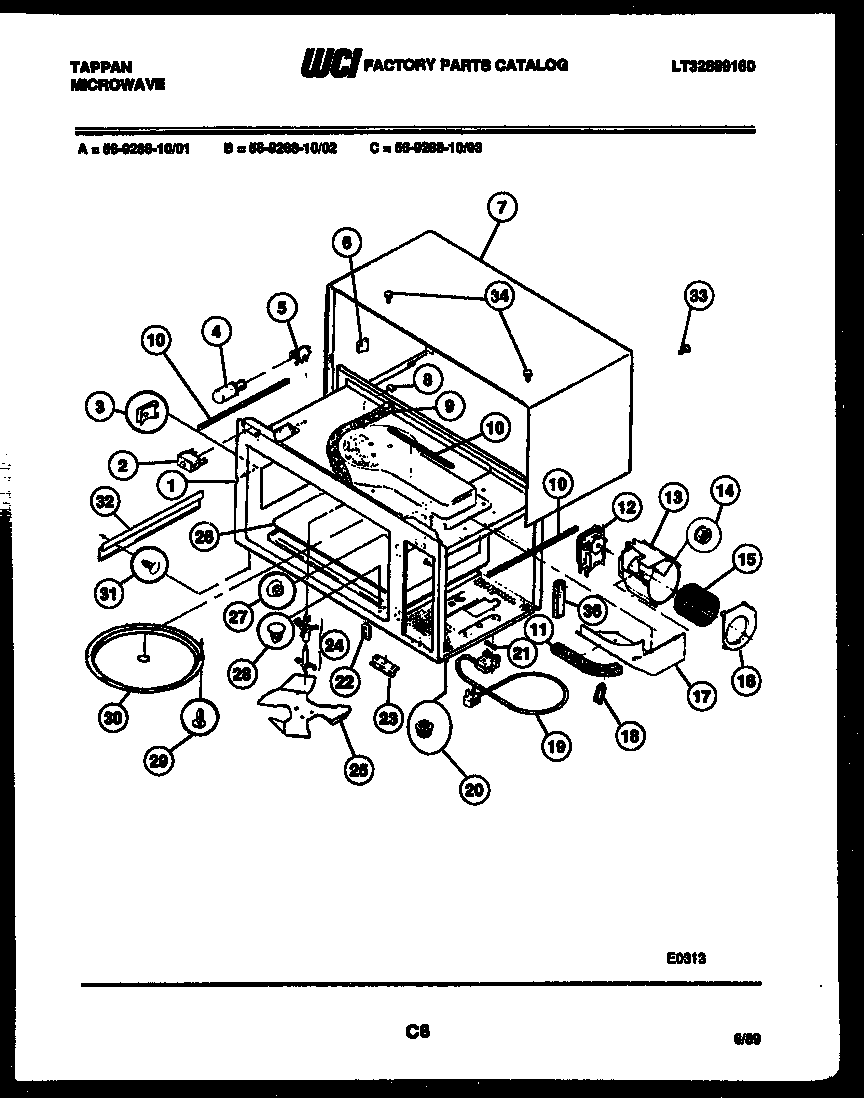

56-9288-23-02 04 – BODY PARTS – Aparts

56-9288-23-02 04 – BODY PARTS

Products

Position	Product
*12462	WCI 3017967
*12462	WCI 3017866
3	3203010 Frigidaire Clip
4	BULB
5	WCI 08037736
6	CLIP - WRAPPER
7	WCI 3017091
8	SPACER
9	DUCT-AIR FOAM
10	SEAL (1/4 X 1/4)
11	SEAL (1/2 X 3/4)
12	WCI 3011677
13	WCI 3012868
14	WCI 3013270
15	WCI 3091501
16	COVER HOUSING
17	WCI 3018201
18	CLIP
19	WCI 08037629
20	WCI 3014097
21	FUSE
23	WCI 3011555
24	KIT - STIRRER SUPT
25	WCI 3012289
26	GLASS - TRAY
27	PLUG BUTTON
28	WCI 3013628
29	RIVET - COVER
31	CLIP - BAFFLE
32	BAFFLE - AIR W/ CLIPS
33	SCREW - WRAPPER (10)
34	WCI 3202600
36	WCI 3091131
