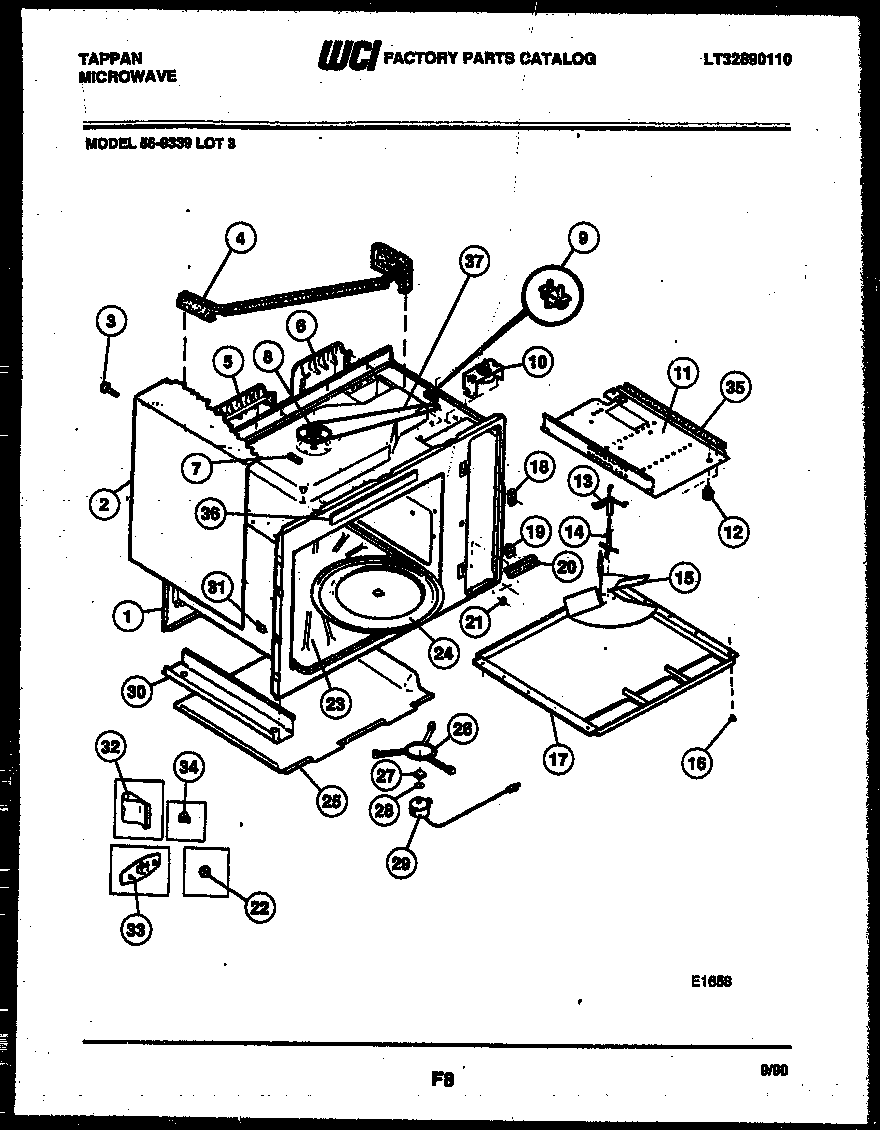

56-9339-10-03 05 – BODY PARTS

Products

PositionProduct
*41574WASHER-PULLEY
2WRAPPER (WOODGRAIN)
3SCREW-WRAPPER (13)
4SEAL-FOAM
5WCI 5303201371
6WCI 5303012196
7SPACER – WRAPPER
8WCI 5303013647
9WCI 5303091280
10MOTOR – PULLEY
11WCI 5303210624
12FOOT (4)
13WCI 5303011826
14WCI 5303202875
15WCI 5303012284
16RIVET-COVER (8)
17WCI 5303200554
18BEZEL-LATCH (2)
19WCI 5308037644
20BRACKET
21PLUG-BUTTON
22PLUG-BUTTON (8)
23GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
24TRAY-ROUND
25SHIELD – BOTTOM
26SUPPORT-ROLLERS
27WCI 5303922044
28WASHER
29WCI 5308037652
30WCI 5303011773
313203010 Frigidaire Clip
32WCI 5303012322
33PLUG-BUTTON
34C5303321319 Frigidaire Refrigerator White Touch Up Paint
34ASHIELD-LIGHT (NON-ILLUSTRATED)
34PLUG-BUTTON TRAY (2)
35SEAL-FOAM CUT TO SIZE
36WCI 5303018849
37WCI 5303011495
