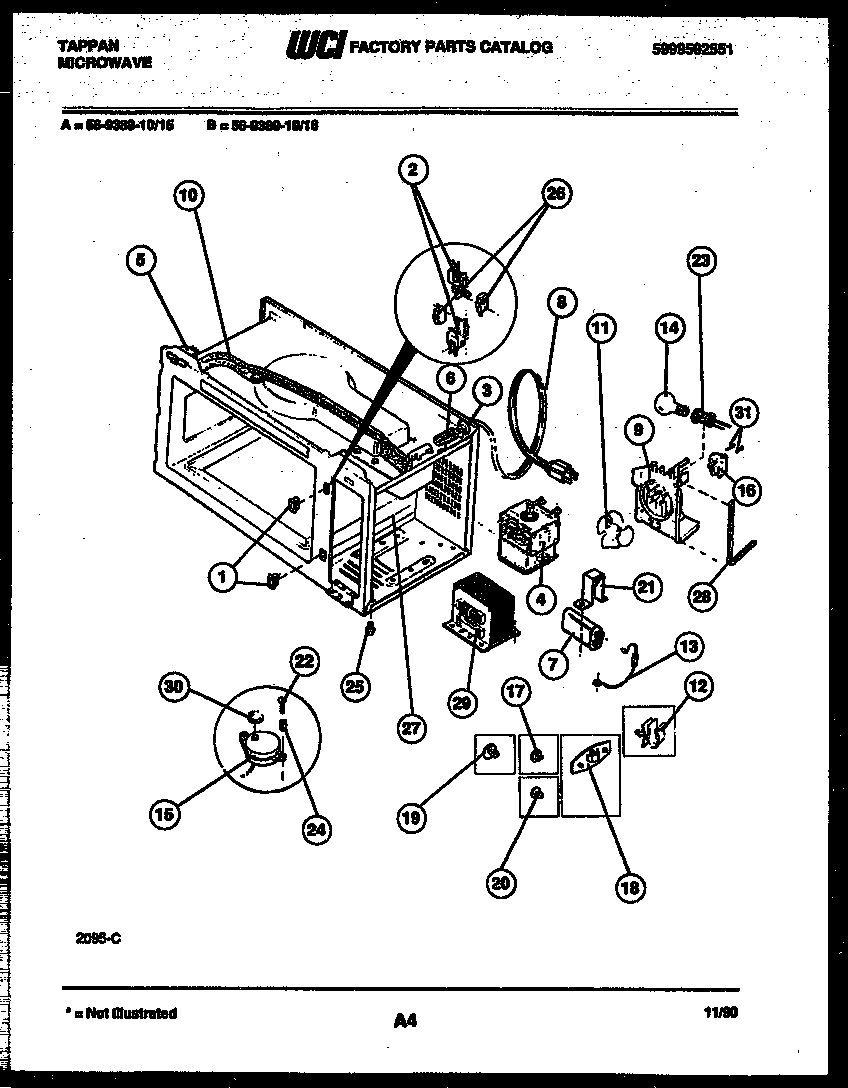

56-9389-10-15 04 – FUNCTIONAL PARTS

Products

Position	Product
*39195	WCI 5303203239
*39195	WCI 5303269846
*39195	WCI 5303212796
*39195	WCI 5303017865
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	WCI 5303212773
8	WCI 5303212774
9	WCI 5303212779
10	WCI 5303212783
11	WCI 5303212786
12	WCI 5303212787
13	WCI 5303212799
14	LAMP-120V
15	WCI 5303203150
16	WCI 5303212802
17	PLUG-BUTTON
18	PLUG-BUTTON
19	PLUG-BUTTON (8)
20	PLUG-BUTTON TRAY (2)
21	WCI 5303013771
22	SCREW - TRIAC
23	SOCKET, OVEN LAMP, 120V
24	SPACER-MOTOR
25	FOOT (4)
26	WCI 5303203636
27	WCI 5303212845
28	SEAL-FOAM CUT TO SIZE
29	WCI 5303212811
30	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
31	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
