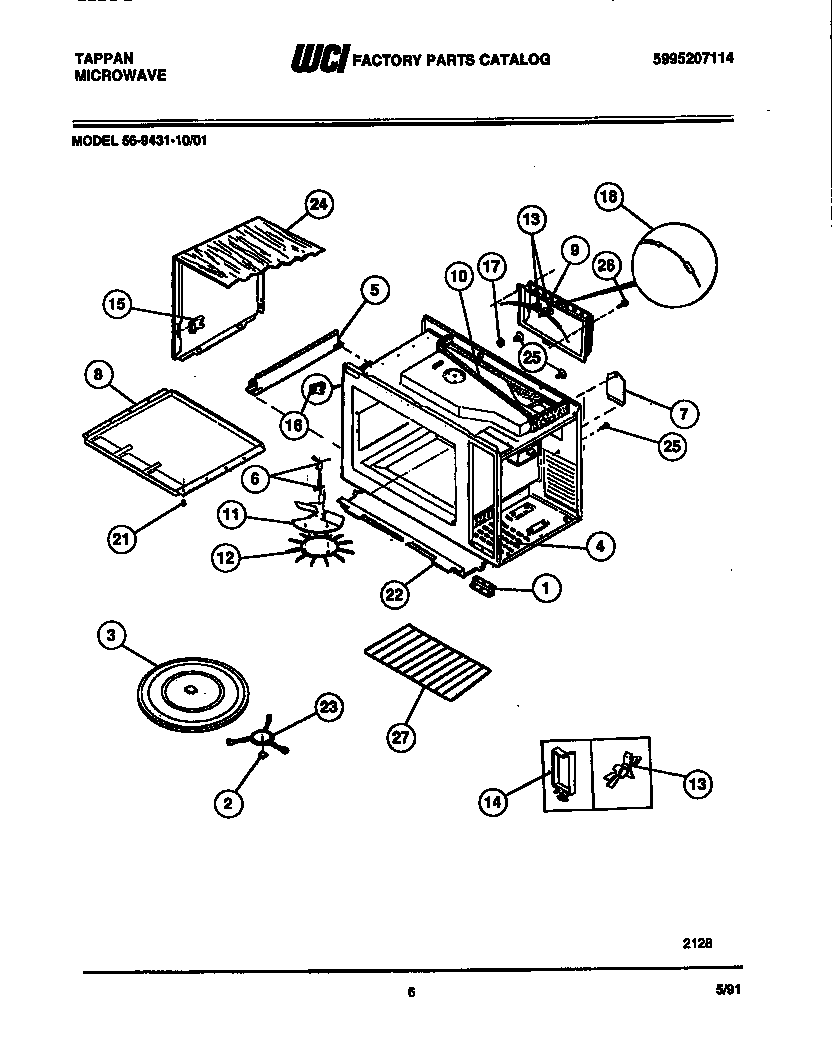

56-9431-10-01 05 – WRAPPER AND BODY PARTS

56-9431-10-01 05 – WRAPPER AND BODY PARTS

Written by

in

56-9431-10-01 05 – WRAPPER AND BODY PARTS

Products

PositionProduct
*50120216273000 Frigidaire Refrigerator Strap
1BRACKET-CONT PNL SUPT
2BUSHING-MOTOR
3TRAY-ROUND
4WCI 5303269830
5WCI 5303011773
6WCI 5303922010
7WCI 5303212775
8COVER, STIRRER
9WCI 5303269958
10SEAL-FOAM
11WCI 5303269835
12WCI 5303269836
13WCI 5303212788
14CLIP
15WCI 5303012322
163203010 Frigidaire Clip
17WCI 5303212795
18WCI 5303212800
21RIVET-COVER (8)
22SHIELD-OVEN BOTTOM, BLACK
23SUPPORT-ROLLERS
24WCI 5303269842
25PLUG, BUTTON, WHITE, (2)
25BSHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
25C5303321319 Frigidaire Refrigerator White Touch Up Paint
25ASCREW-WRAPPER (13)
26WCI 5303271024
27RACK
