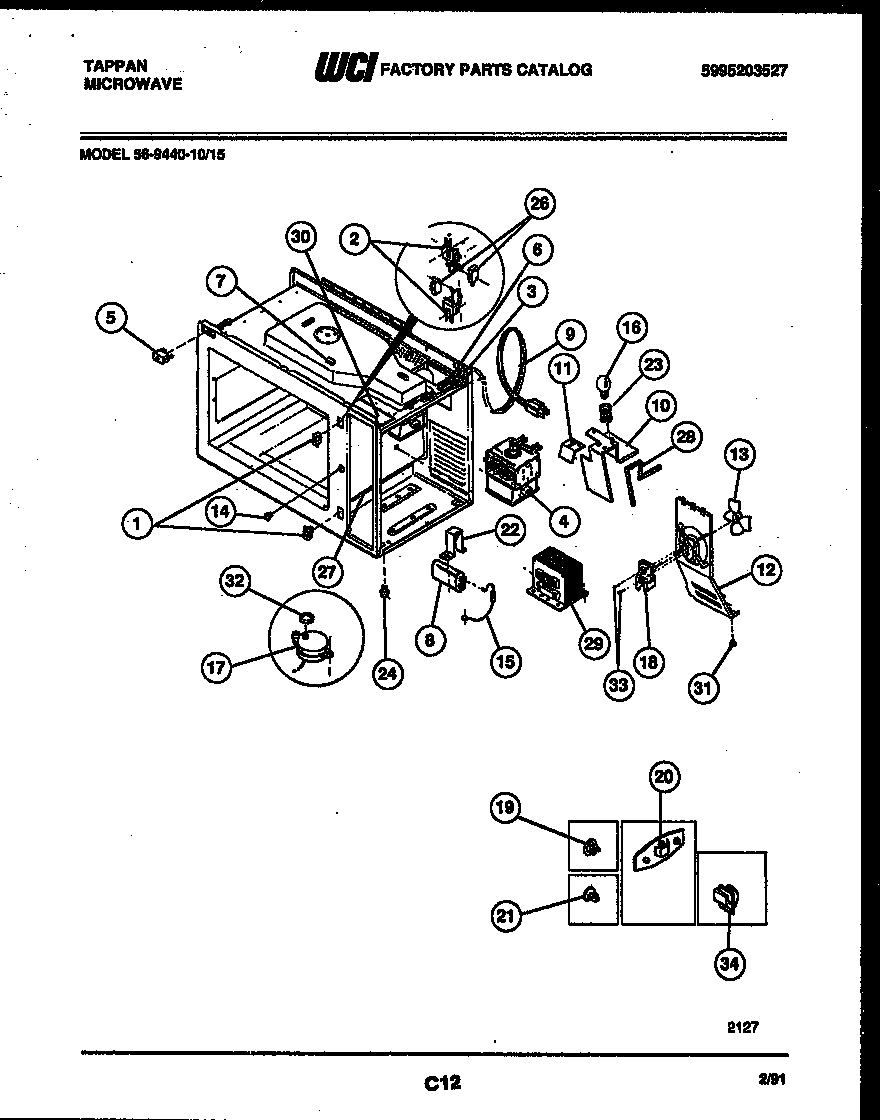

56-9440-10-15 04 – FUNCTIONAL PARTS

Products

Position	Product
1	WCI 5303212767
2	BRACKET (2)
3	WCI 5303212769
4	WCI 5303206781
5	SWITCH-MONITOR
6	FUSE-20 AMP
7	SPACER
8	WCI 5303269608
9	WCI 5303212774
10	WCI 5303269831
11	WCI 5303269832
12	WCI 5303269833
13	WCI 5303269834
14	WCI 5308037644
15	WCI 5303269837
16	LAMP-120V
17	WCI 5303922046
18	WCI 5303212802
19	PLUG-BUTTON
20	PLUG-BUTTON
21	PLUG-BUTTON TRAY (2)
22	WCI 5303013771
23	SOCKET, OVEN LAMP, 120V
24	FOOT (4)
26	WCI 5303203636
27	WCI 5303212845
28	SEAL-FOAM CUT TO SIZE
29	WCI 5303212811
30	Nut
31	WCI 5303269846
31A	WCI 5303269843
32A	WCI 5303203239
32	WASHER
32C	SCREW – TRANS (4) (NON-ILLUSTRATED)
32B	HEX NUT
33	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
34	SUPPORT RACK (8)
