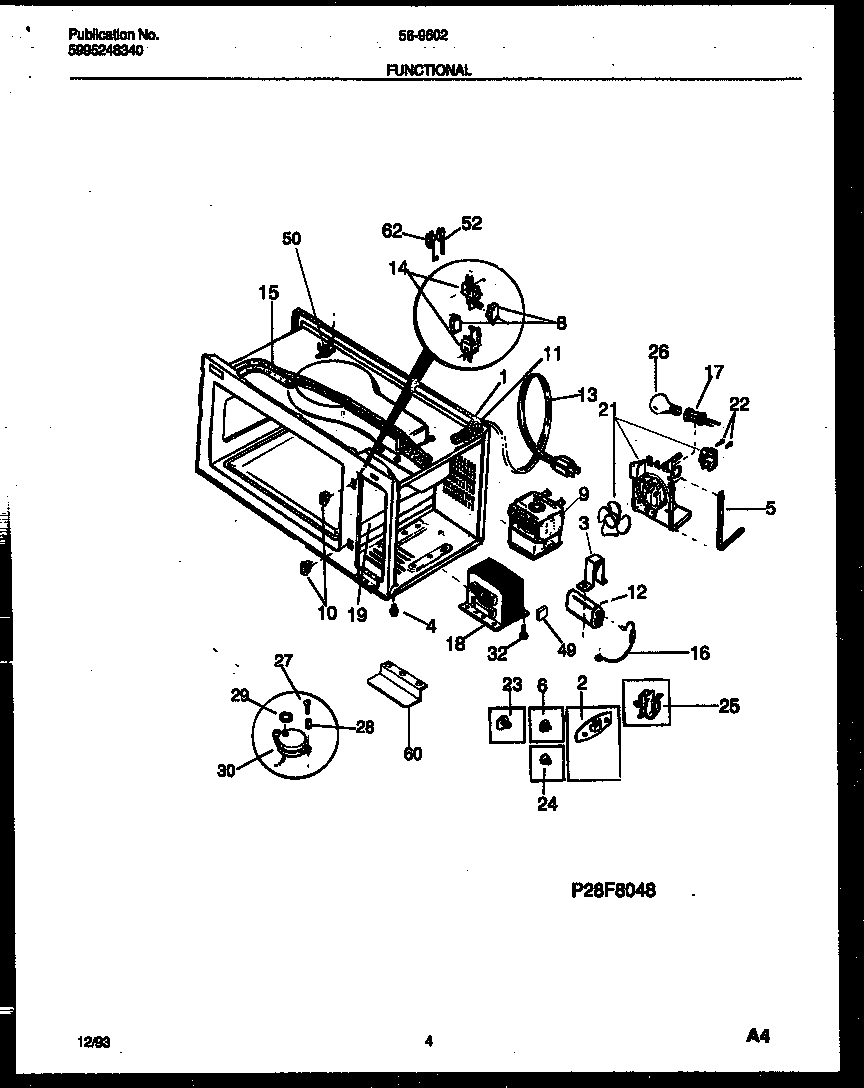

56-9602-10-02 04 – FUNCTIONAL PARTS

Products

Position	Product
*92696	WCI 317000318
1	FUSE-20 AMP
2	PLUG-BUTTON
3	WCI 5303013771
4	WCI 5303295314
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
8	WCI 5303203636
9	WCI 5303286175
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303212773
13	WCI 317005403
14	WCI 317000702
15	WCI 5303212783
16	WCI 5303212799
17	SOCKET, OVEN LAMP, 120V
18	WCI 317016902
19	WCI 5303212845
21	WCI 5303922053
22	WCI 317004703
23	PLUG-BUTTON (8)
24	PLUG-BUTTON TRAY (2)
25	WCI 5303212787
26	WCI 5303272172
27	WCI 317009501
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30A	WCI 5303292336
30	WCI 317005501
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
49	WCI 5303278804
50	WCI 5303278810
50A	WCI 5303284335
52	WCI 317005104
60	BRACKET, ANGLE, FRONT RIGHT BTM
60A	5303017863 Frigidaire Screw
62	WCI 317005103
