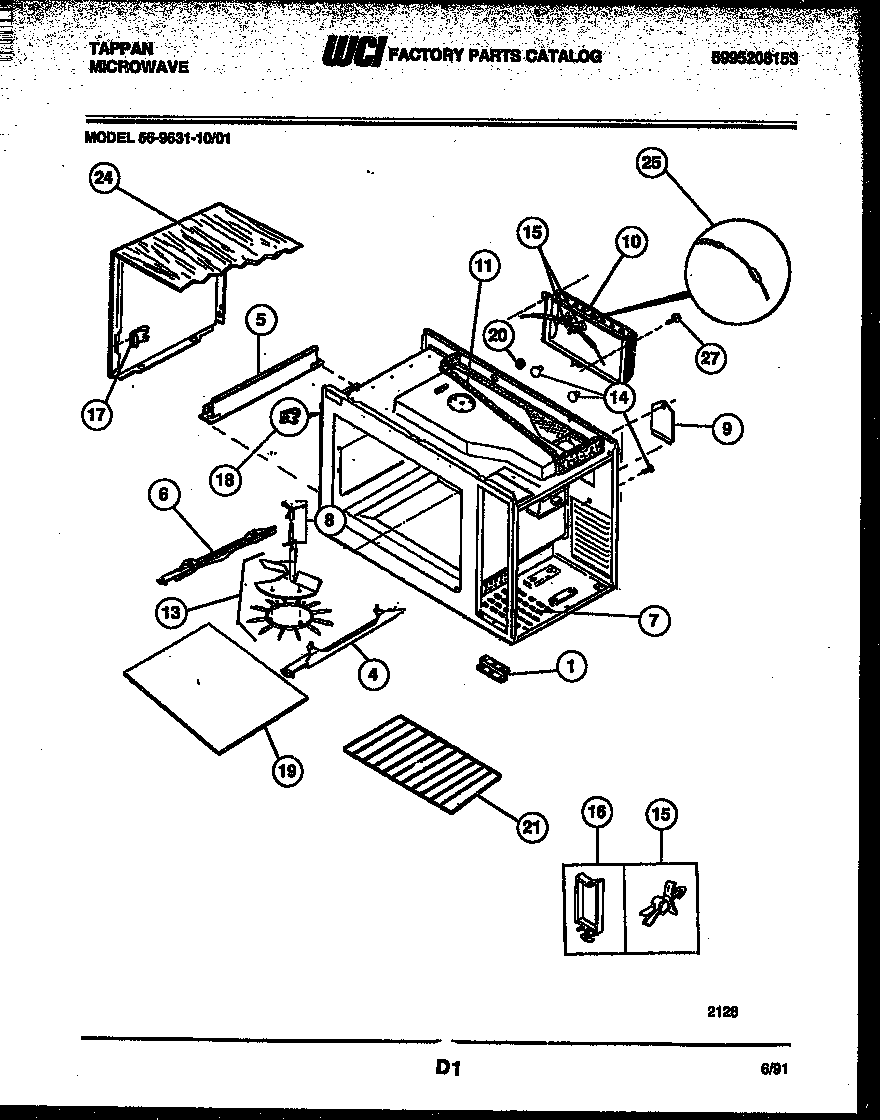

56-9631-10-01 05 – WRAPPER AND BODY PARTS

56-9631-10-01 05 – WRAPPER AND BODY PARTS

Written by

in

56-9631-10-01 05 – WRAPPER AND BODY PARTS

Products

PositionProduct
*51449DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
*51450SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
*51450WCI 5303273263
1BRACKET-CONT PNL SUPT
4CHANL-SUPT RH
5CHANL-SUPT LH
6CHANL-SUPT LH
7WCI 5303269830
8WCI 5303922010
9WCI 5303212775
10WCI 5303269958
11SEAL-FOAM
12WCI 5303269835
13FAN-STIRRER
14PLUG, BUTTON, WHITE, (2)
15WCI 5303212788
16CLIP
17WCI 5303012322
183203010 Frigidaire Clip
19GLASS-STIRRER CVR
20WCI 5303212795
21RACK
24WCI 5303269842
25WCI 5303212800
27WCI 5303271024
