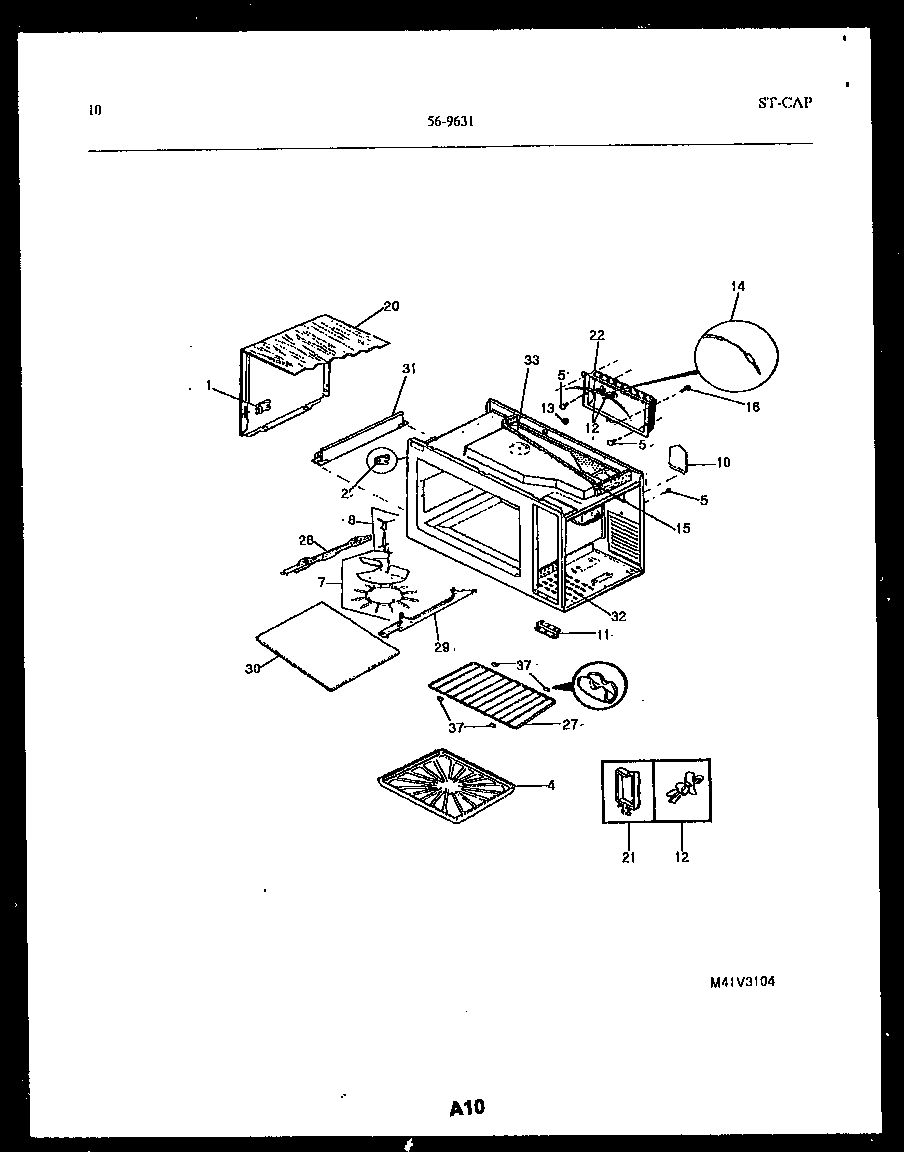

56-9631-10-02 06 – WRAPPER AND BODY PARTS

56-9631-10-02 06 – WRAPPER AND BODY PARTS

Written by

in

56-9631-10-02 06 – WRAPPER AND BODY PARTS

Products

PositionProduct
*69154DUCT-CAVITY FOAM-INTERNAL-FAN STIRRER AREA
*69154SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
*691545303321319 Frigidaire Refrigerator White Touch Up Paint
23203010 Frigidaire Clip
4GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
5PLUG, BUTTON, WHITE, (2)
7FAN-STIRRER
8WCI 5303922010
10WCI 5303212775
11AWCI 5303273916
11BRACKET-CONT PNL SUPT
12WCI 5303212788
13WCI 5303280263
14WCI 5303212800
15Nut
16WCI 5303271024
20AWCI 5303273263
20WCI 5303283483
21CLIP
22WCI 5303269958
27RACK
28CHANL-SUPT LH
29CHANL-SUPT RH
30GLASS-STIRRER CVR
31WCI 5303011773
32WCI 5303269830
33SEAL-FOAM
37SPACER-RACK (4)
