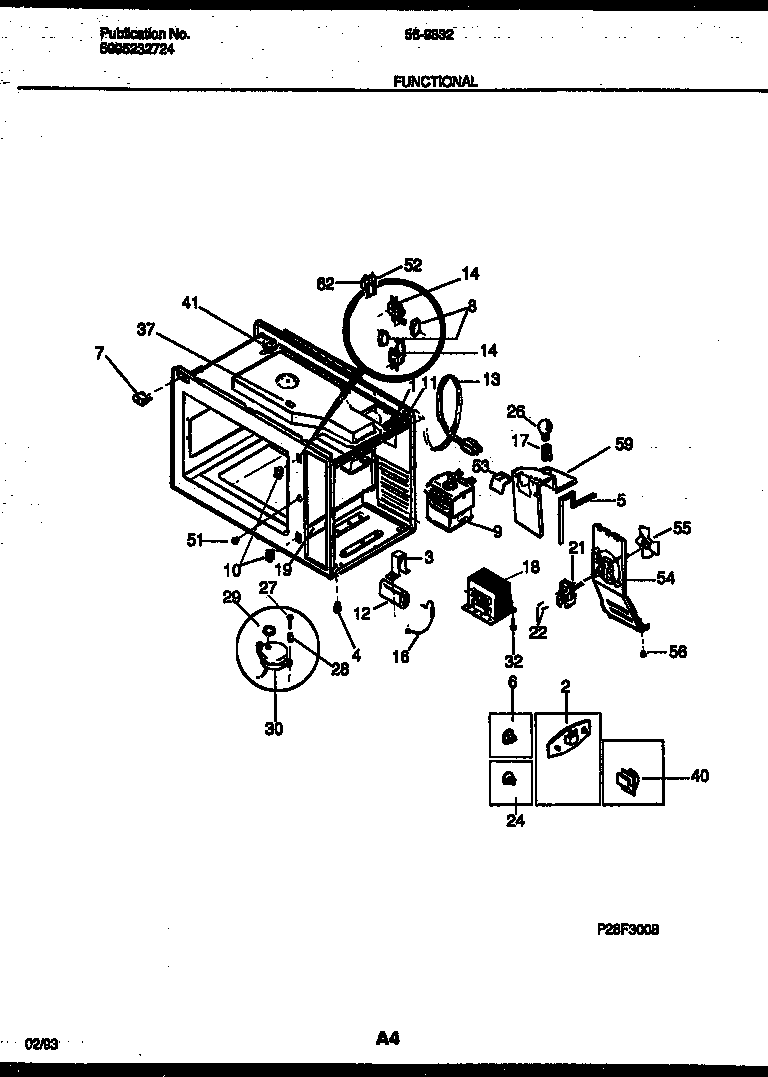

56-9832-10-02 04 – FUNCTIONAL PARTS

Products

Position	Product
*82731	WCI 317000401
1	FUSE-20 AMP
2	PLUG-BUTTON
3	WCI 5303013771
4	WCI 5303295314
5	SEAL-FOAM CUT TO SIZE
6	PLUG-BUTTON
7	SWITCH-MONITOR
8	WCI 5303203636
9	WCI 5303286175
10	WCI 5303212767
11	WCI 5303212769
12	WCI 5303269608
13	WCI 317005403
14	BRKT-SWITCH-LOWER
16	WCI 5303269837
17	SOCKET, OVEN LAMP, 120V
18	WCI 5303279131
19	WCI 5303273954
21	WCI 5303922053
22A	HEX NUT
22	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
24	PLUG-BUTTON TRAY (2)
26	LAMP-120V
27	WCI 317009501
28	SPACER-MOTOR
29	WASHER, TURNTABLE MOTOR, PLACE BETWEEN, MTR & OVEN BTM
30A	WCI 5303292336
30	WCI 317005501
30B	WCI 5303273297
32	SCREW – TRANS (4) (NON-ILLUSTRATED)
37	SPACER
40	SUPPORT RACK (8)
41	WCI 5303283522
51	WCI 5308037644
53	WCI 5303269832
54	WCI 5303269833
55	WCI 5303269834
56	WCI 5303269846
59	WCI 5303286094
