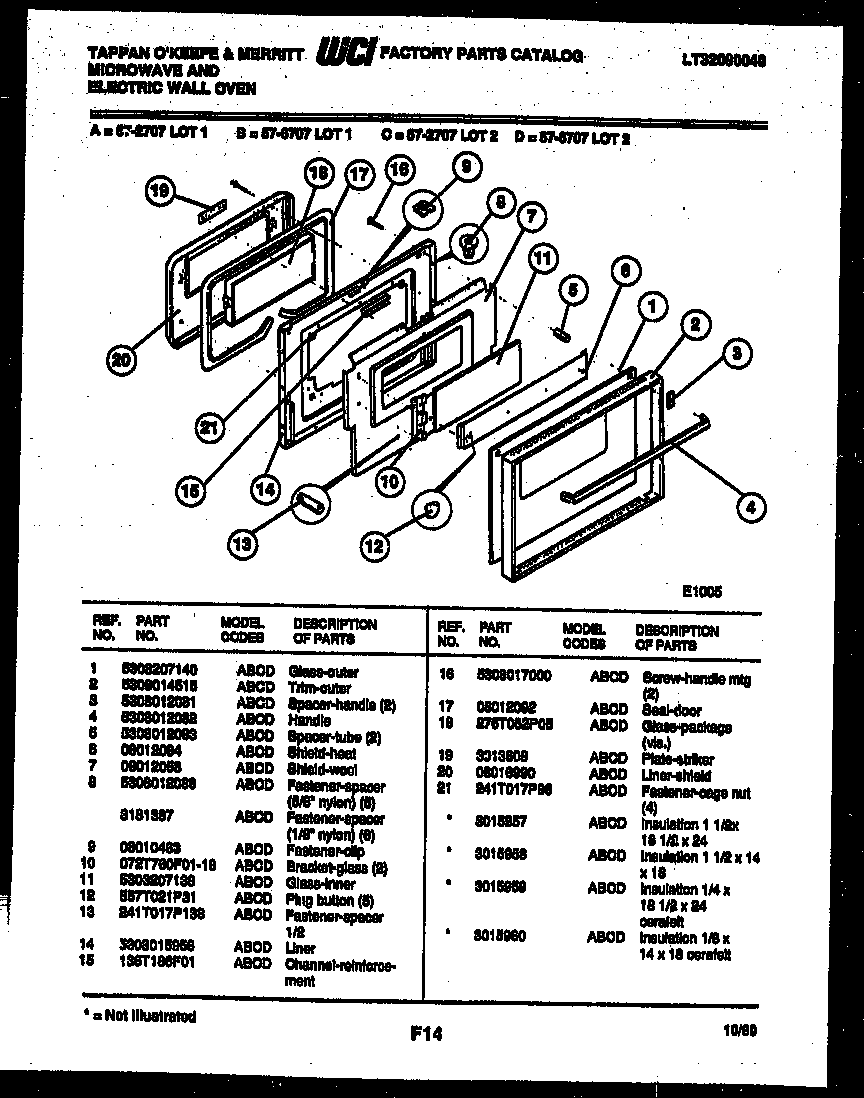

57-2707-10-02 06 – LOWER OVEN DOOR PARTS

57-2707-10-02 06 – LOWER OVEN DOOR PARTS

Written by

in

57-2707-10-02 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*39828INSULATION 1/8 X 14 X 18 CERAFELT
*39828INSULATION 1 1/2 X 18 1/2 X 24
*39828INSULATION 1 1/2 X 14 X 18
*39828INSULATION 1/4 X 18 1/2 X 24
1WCI 5303207140
2WCI 5308014515
3SPACER-HANDLE (2)
4WCI 5308012082
5WCI 5308012083
6WCI 08012084
7WCI 08012058
8FSTNR, SPACER (2)
8WCI 5308012086
9WCI 08010463
10WCI 072T760F01-18
11GLASS-INNER
12PLUG BTTN-FRNT FRAME (4)
13FASTENER-SPACER 1/2
14WCI 5303015956
15CHANNEL-REINFORCEMENT
16WCI 5308017000
17WCI 08012092
18GLASS-PACKAGE (VIS.)
19WCI 3013608
20WCI 08016990
21WCI 241T017P96
