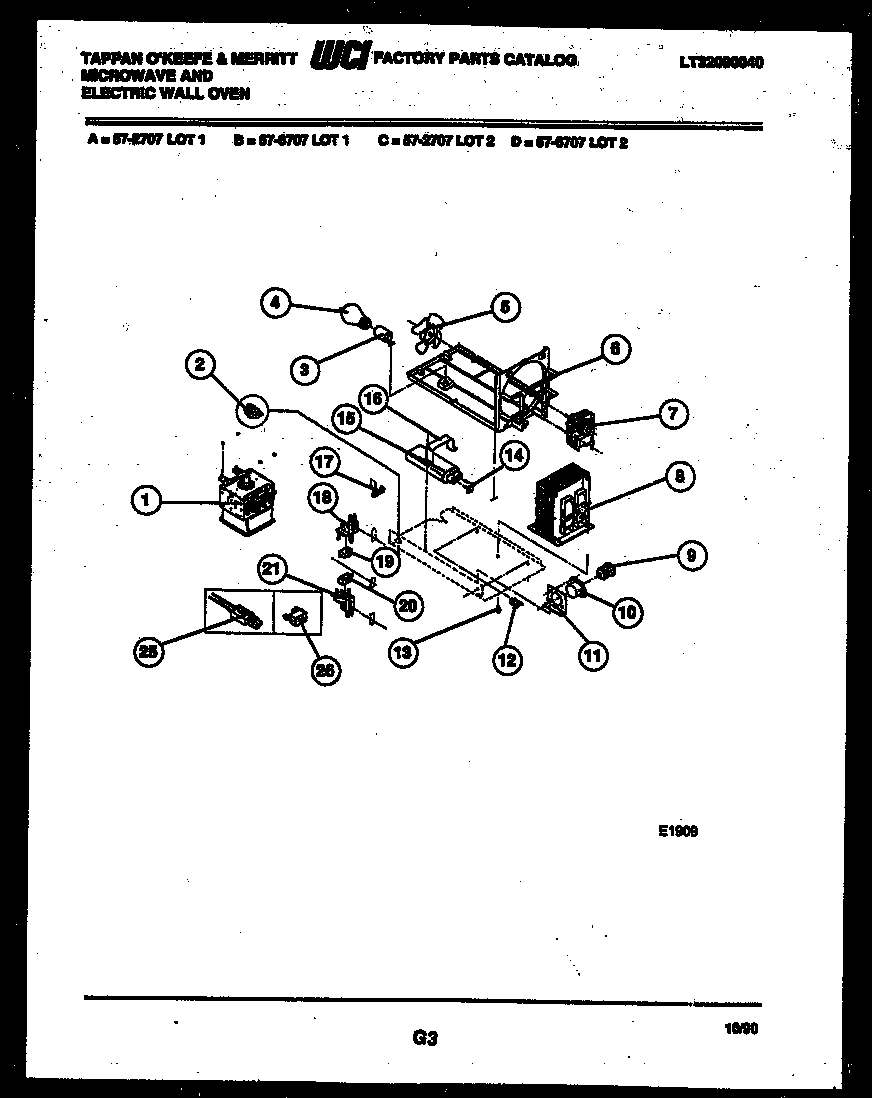

57-2707-10-02 09 – POWER CONTROL

Products

Position	Product
1	WCI 5303011673
2	WCI 08008983
3	SOCKET
4	BULB
5	WCI 5303203192
6	DUCT-AIR
7	WCI 5308037636
8	WCI 5308037626
8A	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
8B	HEX NUT
9	SOCKET
10	FUSE
11	WCI 5308008973
12	CLIP
13	SCREW - TRANS (4) (NON-ILLUSTRATED)
14	DIODE HIGH VOLTAGE
15	CAPACITOR - HV
16	WCI 5303013773
17	WCI 5303091280
20	WCI 5303203636
21	BRACKET (2)
25D	WCI 5308014479
25C	WCI 3091370
25B	WCI 3091359
25A	WCI 5308037683
25	MICROWAVE FAN PLUG
25E	WCI 08014480
26	SWITCH-MONITOR
