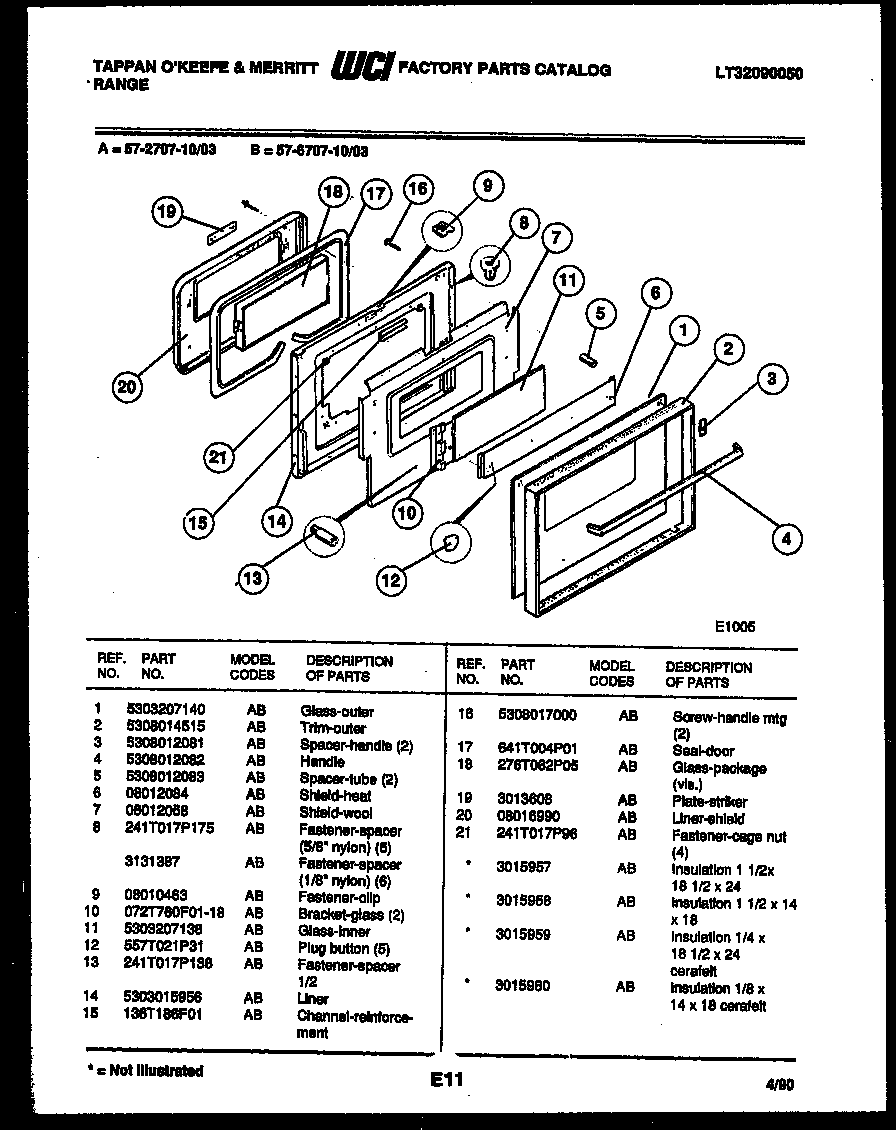

57-2707-10-03 06 – DOOR PARTS

57-2707-10-03 06 – DOOR PARTS

Written by

in

57-2707-10-03 06 – DOOR PARTS

Products

PositionProduct
*37114INSULATION 1/8 X 14 X 18 CERAFELT
*37113INSULATION 1 1/2 X 18 1/2 X 24
*37113INSULATION 1 1/2 X 14 X 18
*37114INSULATION 1/4 X 18 1/2 X 24
1WCI 5303207140
2WCI 5308014515
3SPACER-HANDLE (2)
4WCI 5308012082
5WCI 5308012083
6WCI 08012084
7WCI 08012058
8AFSTNR, SPACER (2)
8FASTENER-SPACER (5/8“ NYLON) (5)
9WCI 08010463
10WCI 072T760F01-18
11GLASS-INNER
12PLUG BTTN-FRNT FRAME (4)
13FASTENER-SPACER 1/2
14WCI 5303015956
15CHANNEL-REINFORCEMENT
16WCI 5308017000
17WCI 641T004P01
18GLASS-PACKAGE (VIS.)
19WCI 3013608
20WCI 08016990
21WCI 241T017P96
