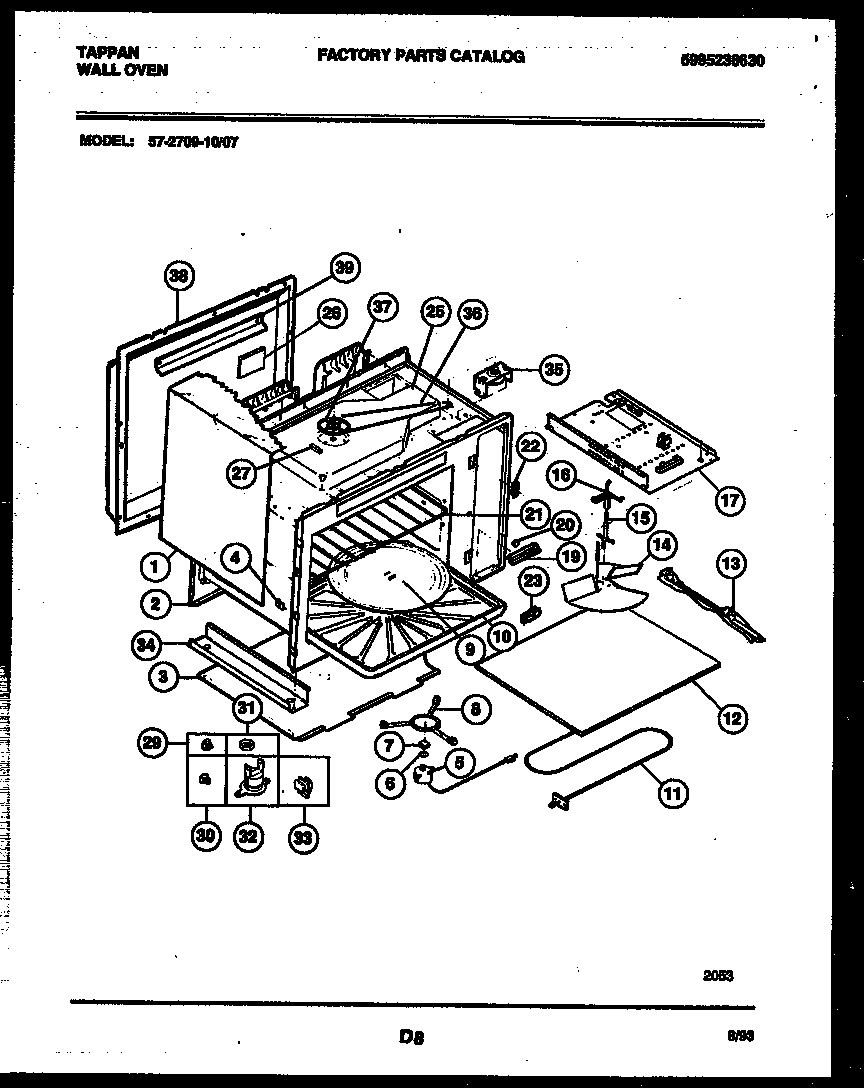

57-2709-00-07 07 – WRAPPER AND BODY PARTS

Products

Position	Product
*88128	SPACER-MOTOR
1	WRAPPER-TOP & SIDES
3	SHIELD-BOTTOM
5	WCI 317005501
6	WASHER-PULLEY
7	BUSHING-MOTOR
8	SUPPORT-ROLLERS
9	TRAY-ROUND
10	GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
11	ELMNT-BROWNER
12	GLASS-STIRRER CVR
13A	CHANL-SUPT RH
13	CHANL-SUPT LH
14	FAN-STIRRER
15	WCI 5303202875
16	WCI 5303011826
17	WCI 5303210624
19	BRACKET
20	WCI 5308037644
21	RACK
22	WCI 5303212767
23	SPACER-RACK (4)
25	DUCT-AIR (FOAM)
26	COVER LIGHT
27	SPACER
29	PLUG-BUTTON
30	PLUG-BUTTON TRAY (2)
31	3203010 Frigidaire Clip
32	WCI 5303202107
33	SUPPORT RACK (8)
34C	LABEL-COOK GUIDE (NON-ILLUSTRATED)
34B	SHIELD-OVEN LITE-MYLAR (NON-ILLUSTRATED)
34A	SEAL-FOAM
34	WCI 5303011773
35	WCI 5303206759
36	WCI 5303011495
37	WCI 5303013647
38	WCI 5303203692
39	ANGLE-AIR BAFFLE
