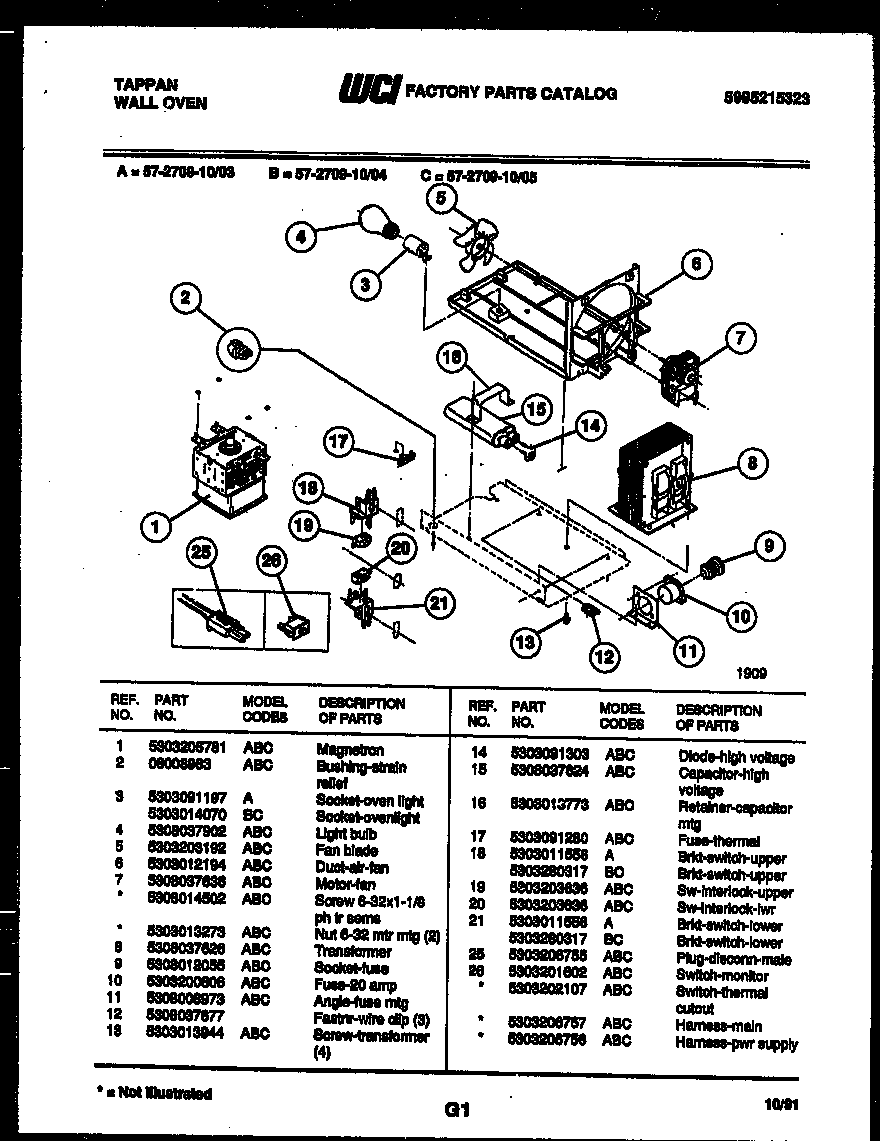

57-2709-10-04 06 – POWER CONTROL

Products

Position	Product
*51843	WCI 5303202107
*51843	WCI 5303206756
*51843	WCI 5303206757
1	WCI 5303206781
2	WCI 08008983
3	SOCKET
4	BULB
5	WCI 5303203192
6	DUCT-AIR
7A	SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
7	WCI 5308037636
7B	HEX NUT
8	WCI 5308037626
9	SOCKET
10	FUSE
11	WCI 5308008973
13	SCREW – TRANS (4) (NON-ILLUSTRATED)
14	DIODE HIGH VOLTAGE
15	CAPACITOR – HV
16	WCI 5303013773
17	WCI 5303091280
20	WCI 5303203636
21	BRKT-SWITCH-LOWER
25	WCI 5303206755
26	SWITCH-MONITOR
