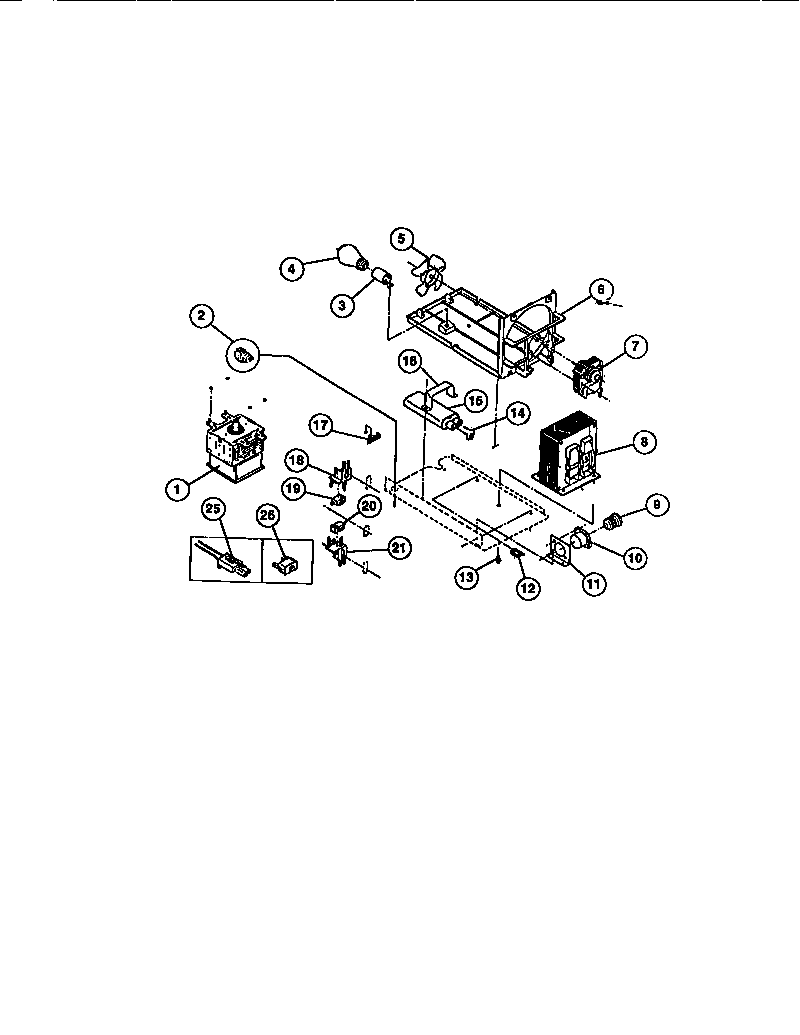

57-5709-10-03 06 – MAGNETRON, AIR DUCT, CAPACITOR

Products

PositionProduct
*10247WCI 5303206756
*10246WCI 5303206757
*10245WCI 5303202107
1WCI 5303206781
2WCI 08008983
3WCI 5303091197
4BULB
5WCI 5303203192
6DUCT-AIR
7WCI 5308037636
7SCREW-6-32 X 1-1/8 PH TR SEMS (NON-ILLUSTRATED)
7HEX NUT
8WCI 5308037626
9SOCKET
10FUSE
11WCI 5308008973
12CLIP
13SCREW – TRANS (4) (NON-ILLUSTRATED)
14DIODE HIGH VOLTAGE
15CAPACITOR – HV
16WCI 5303013773
17WCI 5303091280
20WCI 5303203636
21BRACKET (2)
25WCI 5303206755
26SWITCH-MONITOR
