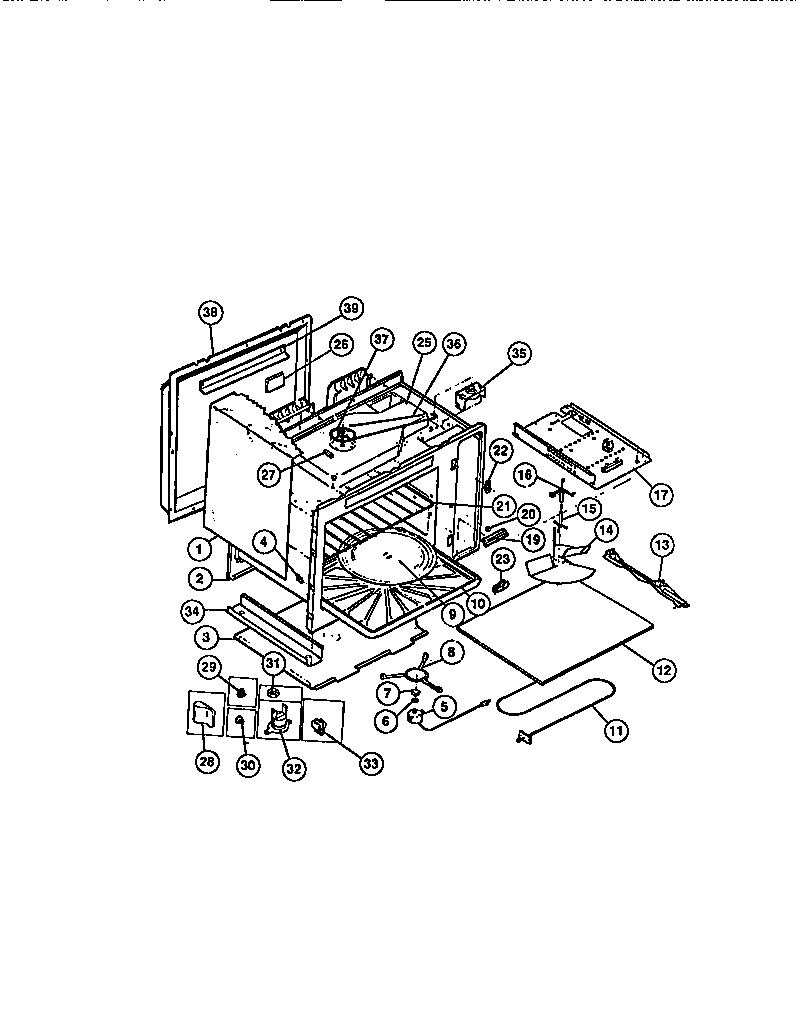

57-5709-10-03 07 – CAVITY/ELEMENTS (UPPER OVEN)

57-5709-10-03 07 – CAVITY/ELEMENTS (UPPER OVEN)

Written by

in

57-5709-10-03 07 – CAVITY/ELEMENTS (UPPER OVEN)

Products

PositionProduct
*10248SEAL-FOAM
*10250WCI 5303018849
*10249SHIELD-LIGHT (NON-ILLUSTRATED)
1WCI 5303203194
3SHIELD – BOTTOM
43203010 Frigidaire Clip
5WCI 5303922046
6WASHER-PULLEY
7WCI 5303922044
8SUPPORT-ROLLERS
9TRAY-ROUND
10GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
11ELMNT-BROWNER
12GLASS-STIRRER CVR
13CHANL-SUPT LH
13CHANL-SUPT RH
14WCI 5308037708
15WCI 5303202875
16WCI 5303011826
17WCI 5303210624
19BRACKET
20WCI 5308037644
21RACK
22BEZEL-LATCH (2)
23SPACER-RACK (4)
25DUCT-AIR (FOAM)
26COVER LIGHT
27SPACER – WRAPPER
28WCI 5303012322
29PLUG-BUTTON
30PLUG-BUTTON TRAY (2)
31NUT, TWIST
32WCI 5303202107
33SUPPORT RACK (8)
34WCI 5303011773
35WCI 5303206759
36WCI 5303011495
37WCI 5303013647
38WCI 5303203692
39ANGLE-AIR BAFFLE
